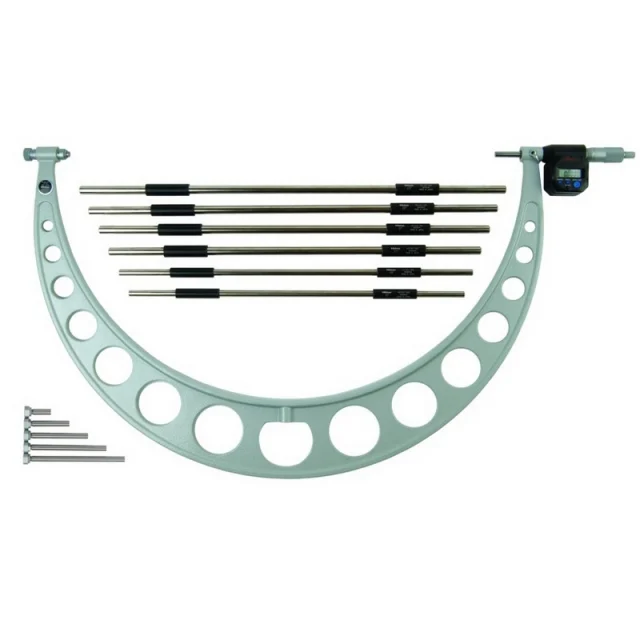

Mitutoyo 340-721 Digimatic Digital Micrometer with Anvil, 18-24″

Mitutoyo, 340-721, Digimatic Digital Micrometer Interchangeable Anvil, 18-24″ / 457.2-609.6 mm

340-721 Includes Only:

• Fitted plastic case
• Gauge block
• Inserts
• Key
• 1 pcs battery

Features:

• The ratchet mechanism provides an audible cli-ck to ensure the measurement is being performed at a constant pre-set force
• SPC output function allows for quick and easy data management in real-time
• Functions: Origin Set, Zero/ABS, Hold, Function Lock, Data Output, and inch/ mm conversion (on inch/metric models only)
• Alarm: Low Voltage, Counting Value Composition Error
• Scale is laser etched on a thimble for easier, faster reading
• Carbide facing on the spindle resists wearing to keep surfaces flatter with longer accuracy
• The speeder is always for quick rotation of the spindle
• IP65 protection permits use in environments exposed to cutting oil, dust, etc.

The Mitutoyo Digimatic metric scale outside digital micrometer features a ratchet stop function and interchangeable anvils for measuring a wide range of workpiece sizes and material types. The Mitutoyo digital ratchet stop outside micrometer is ideal for measuring metal and non-metal workpieces by controlling the amount of spindle force. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. Interchangeable anvils allow for measuring a wide range of workpiece sizes. Measurements are displayed on a coolant-proof, easy-to-read LCD readout.

Technical Details
