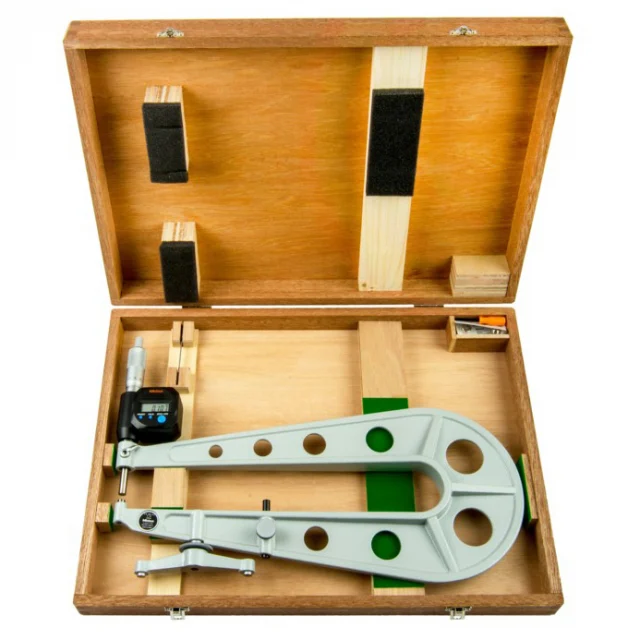

Mitutoyo, 389-714, Digimatic Digital Sheet Metal Micrometer, Inch/Metric, 0-1″
389-714 Includes Only:
- Micrometer
- Dial indicator
- Key
- 2 batteries
Features:
- Carbide tips help resist wear on the measuring faces for accurate measurements for an extended period of time
- SPC output function allows for quick and easy data management in real-time
- Functions: Origin Set, Zero/ABS Setting, Data Hold, Data Output, Function Lock, and inch/ mm conversion
- Alarm: Low Voltage, Counting Value Composition Error
- Satin chrome finish on the sleeve and laser-etched scale on thimble for easier reading
- The frame has a non-slip finish for better grip in shop environments
- Certificate of Inspection is provided
- IP65 protection permits use in environments exposed to cutting oil, dust, etc.
The Mitutoyo Digimatic sheet metal micrometer is designed with a deep measuring throat to enable multiple measurements across a linear plane on materials such as sheet metal, paper, plastic, and rubber. This micrometer has an IP65 dust and water protection level. Readings are displayed on an easy-to-read LCD readout with accessible function buttons. The coolant-proof micrometer’s ratchet thimble mechanism provides a constant measuring force on the spindle to ensure accurate, repeatable measurements.
Technical Details
| Range | 0 – 1″ |
| Parallelism | 0.00012″ |
| Digital step | 0.00005″/0.001 mm |
| Maximum Permissible Error J MPE | ±0.00025″ |
| Anvil / Spindle | Type A, flat/flat |
| Measuring force | 10 – 14 N |
| Mass | 2750 g |
| Display | LCD, character height 7.5 mm |
| Measuring face | Carbide-tipped, micro-lap finish |
| Measuring spindle | With spindle lock, throat depth ≤ 150 mm: ∅ 6,35 mm throat depth =300 mm: ∅ 8 mm, spindle pitch 0.5 mm |
| Scale | Thimble and sleeve satin chrome finish, ∅21 mm |
| Power supply | 2 batteries SR-44 |
| Battery life | Approx. 2.4 years, approx. 1.8 years (389-514) |
| 2 x Preset | Yes |
| Digital/Analog | Digital |
| Inch-Metric | Inch/Metric |
