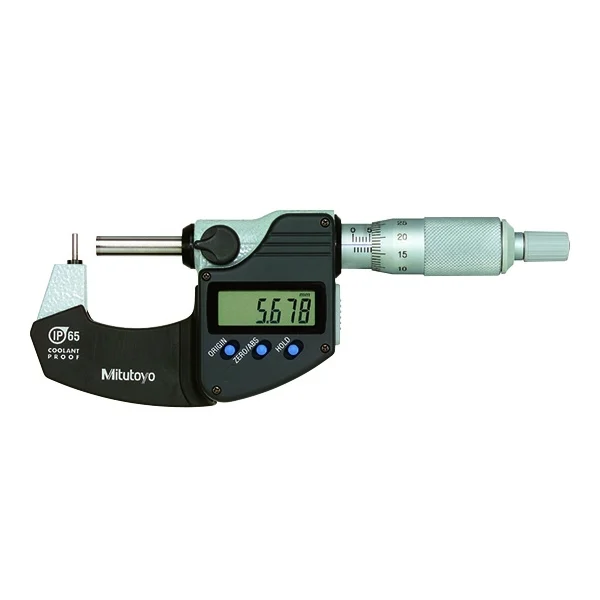

Features:
- Designed to measure the wall thickness of various tubing
- Measuring surfaces are constructed of carbide to reduce wear
- IP65 protection permits use in environments exposed to cutting oil, coolant, dust, etc., for most shop floor environments
- The Ratchet mechanism provides an audible cli-ck to ensure the measurement is being performed at a constant force
- SPC output function allows for quick and easy data management in real time
- Functions include Origin Set, Zero/ABS Setting, Data Hold, Data Output, Function Lock, and inch/mm conversion (on inch/metric models only)
- Alarm: Low Voltage, Counting Value Composition Error
- Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
- Frame has a non-slip finish for better grip in shop environments
- Supplied in fitted plastic case
A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements and eliminates over-speed error.
Technical Details
| Digital/Analog | Digital |
| Inch-Metric | Metric |
| Range | 0 – 25 mm |
| Digital Step | 0,001 mm |
| Dimensions | |
|
|
| Maximum Permissible Error J Mpe | ±3 µm |
| Flatness | 0,3 µm |
| Display | LCD, character height 7.5 mm |
| Anvil / Spindle | Type A, pin D=1.8 mm/flat spindle |
| Measuring Spindle | With spindle lock, Dia. 6,35 mm, spindle pitch 0,5 mm |
| Scale | Thimble and sleeve satin chrome finish, Dia. 18 mm |
| Measuring Force | 3 – 8 N |
| Power Supply | 1 battery SR-44 |
| Battery Life | Approx. 2,4 years |
| Abs / Inc (Inc Zero) | Yes |
| Auto Power Off After 20 Minimum Non Use | Yes |
| Function Lock | Yes |
| Hold | Yes |
| Mass | 270 g |
