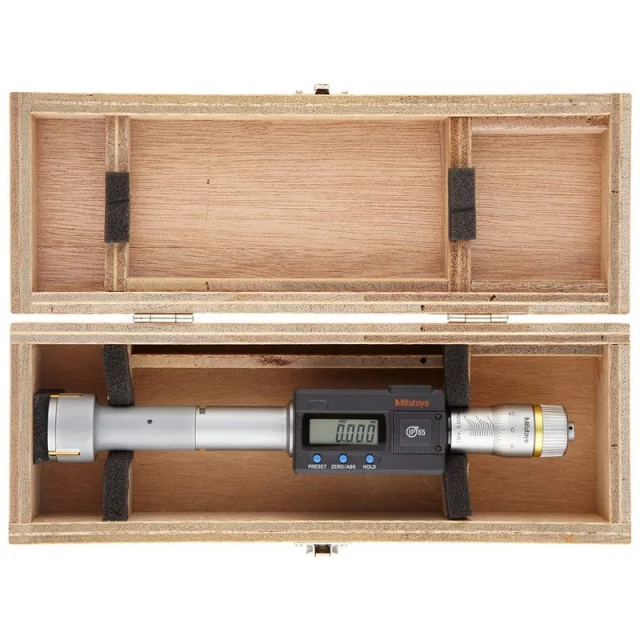

Mitutoyo, 468-167, Digimatic Holtest Digital 3-Point Internal Micrometer, 25-30 mm
468-167 Includes Only:
- A case
- Micrometer
- Certificate of inspection
- Key
- 1 battery
Features:
- SPC output function allows for quick and easy data management in real-time
- Functions: Zero/ABS Setting, Data Hold, Data Output, Function Lock, 2 Presets
- Alarm: Low Voltage, Counting Value Composition Error, Battery Replacement
- Scale on thimble and sleeve is laser etched for easier reading in all conditions
- IP65 protection permits use in environments exposed to cutting oil, dust, etc.
The Mitutoyo Digimatic Holtest digital internal micrometer features self-centering anvils evenly spaced at 120° with contact points coated in Titanium Nitride (TiN) to provide accurate, sensitive measurements that are highly durable. Precision-machined gears ensure reliable, repeatable measurements that are shown on a large, easy-to-read LCD display in an impact and water-resistant housing. The holtest’s ratchet stop mechanism provides a constant measuring force on the hardened-steel spindle to ensure accurate, even measurements.
Technical Details
| Technology | Digimatic |
| Contact Point | TiN coating |
| Measuring Method | Three-point method |
| Display | LCD |
| Battery | SR44 (2 pcs.) 938882 |
| Battery Life | Approx. 1.2 years under normal use |
| Ratchet/Thimble | Ratchet Stop |
| IP Rating | IP65 |
| SPC Output | Yes |
| Units | Metric |
| Range | 25 – 30 mm |
| Resolution | 0.001 mm |
| Accuracy | ±3λm |
| Main Body Assembly | 04AZB108 |
| Mass | 510 g |
