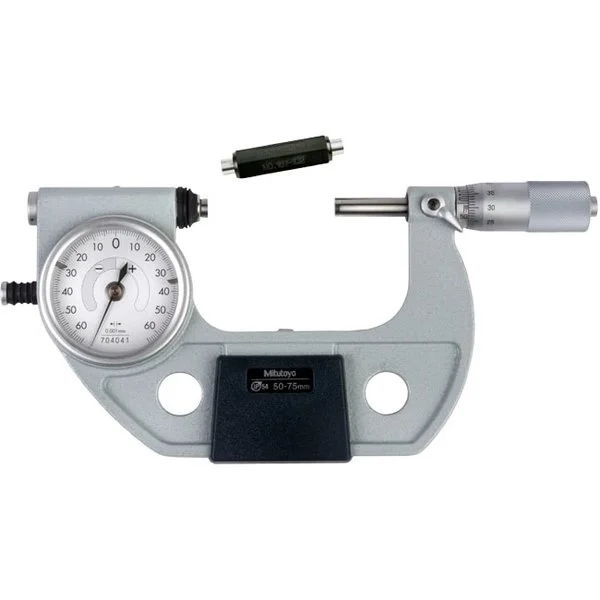

The Mitutoyo indicating micrometer has a smooth, highly precise mic head essential for placing workpieces in rough position, and a dial indicator for fast, accurate deviation readings from a master. A retractable spindle trigger has a balanced spring and operates easily with a button on the anvil side of the frame. The retractable anvil allows for faster workpiece throughput without sacrificing accuracy. The micrometer’s ratchet-stop mechanism delivers uniform pressure on a workpiece for precise, repeatable measurements. A Vernier scale with slanted barrel markings reduces parallax errors and provides highly accurate outside dimension measurements.
Features:
- Dial indicator for Go/No-Go tolerance inspection available in inch units is highly accurate and easy to read
- The micrometer’s ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements
- Carbide facing on the spindle and anvil resists wear to keep surfaces flatter with longer accuracy
- A spindle lock provides secure locking of the measurement position
- Satin chrome finish on the thimble and sleeve resists rust and reduces glare
- Includes a standard bar except for 0-25mm / 0-1″ model
- IP54 protection resists debris, dust and water
Technical Details
| Units: | Metric |
| Range: | 50-75mm |
| Spindle Feed Error: | 3µm |
| Mass: | 820g |
| Indicating Range: | ±0.06mm |
| Dial Graduation: | 0.001mm |
| Graduation: | 0.001mm |
| Flatness: | 0.3µm |
| Parallelism: | 0.1µm or less |
| Anvil Retraction Button: | Left Side |
