Mitutoyo 511-716-20 Standard 250-400mm Dial Bore Gauge

Mitutoyo, 511-716-20, Standard 2-Point 250-400mm Dial Bore Gauge with 0.01mm Graduation

Features:

• Includes a Mitutoyo Dial Indicator
• Large grips are easier to hold and reduce heat transfer from the operator for better accuracy
• A rugged cover fully protects models with dial indicators
• The Gauge stem diameter is 8mm
• Interchangeable anvils are constructed of alloy steel with carbide-tipped measuring faces for added accuracy and durability

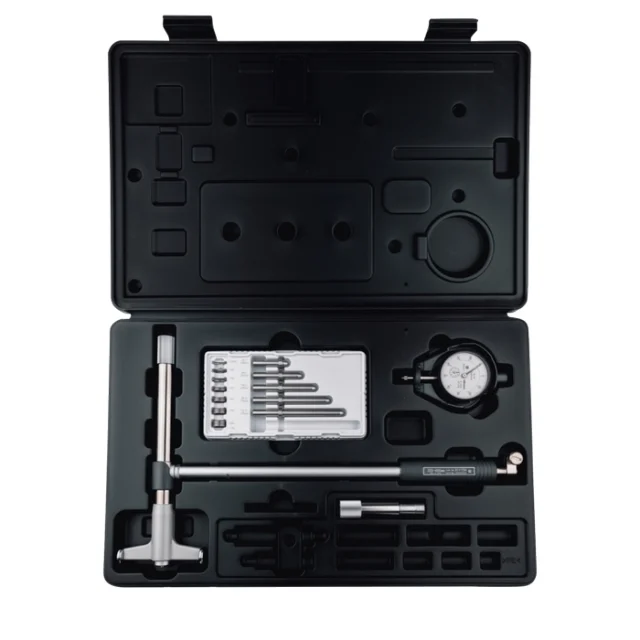

• Supplied in a fitted plastic case

The bore Gauge comes with interchangeable anvils to measure different bore diameters with the same Gauge. A pendulum guide structure improves the slide of the Gauge for measurements while a two-point contact system detects geometry anomalies such as ovalness and taper.

Technical Details
