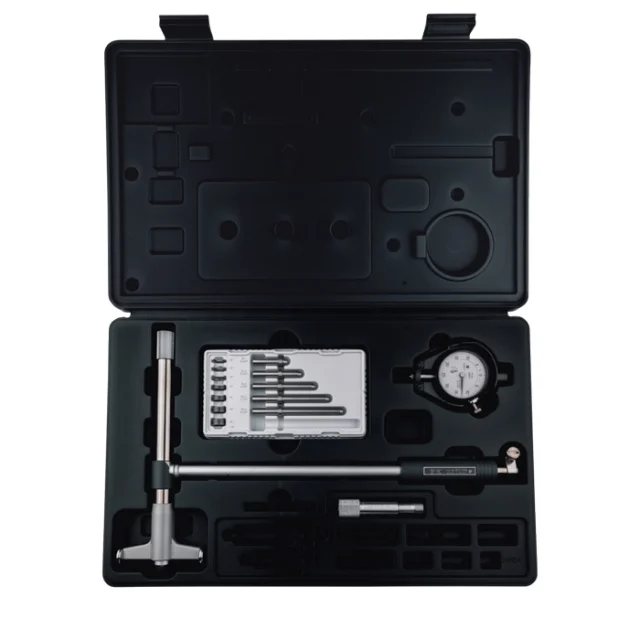

Mitutoyo, 511-746-20, Standard 2-Point 10-16″ Dial Bore Gauge with 0.0005″ Graduation
Features:
- Includes a Mitutoyo Dial Indicator
- Large grips are easier to hold and reduce heat transfer from the operator for better accuracy
- A rugged cover fully protects models with dial indicators
- The Gauge stem diameter is 8mm
- Interchangeable anvils are constructed of alloy steel with carbide-tipped measuring faces for added accuracy and durability
- Supplied in a fitted plastic case
The bore Gauge comes with interchangeable anvils to measure different bore diameters with the same Gauge. A pendulum guide structure improves the slide of the Gauge for measurements while a two-point contact system detects geometry anomalies such as ovalness and taper.
Technical Details
| Inch-Metric | Inch |
| Range | 10 – 16″ |
| Graduation | 0.0005″ |
| Stroke of Contact Point | 1.6 mm |
| Measuring Depth | 10″ |
| No. Dial Indicator | 2922AB |
| Number of Anvils | 5 |
| Accuracy | 2 µm |
| Repeatability | 0,5 µm |
| Digital/Analog | Analog |
| Mass | 945 g |
