Mitutoyo, 511-769-20, Standard 2-Point 100-160mm Dial Bore Gauge with 0.01mm Graduation for Short Length
Features:
- The Gauge stem diameter is 8mm
- Interchangeable anvils are constructed of alloy steel with carbide-tipped measuring faces for added accuracy and durability
- Includes various anvils and spacers depending on size of Gauge ordered

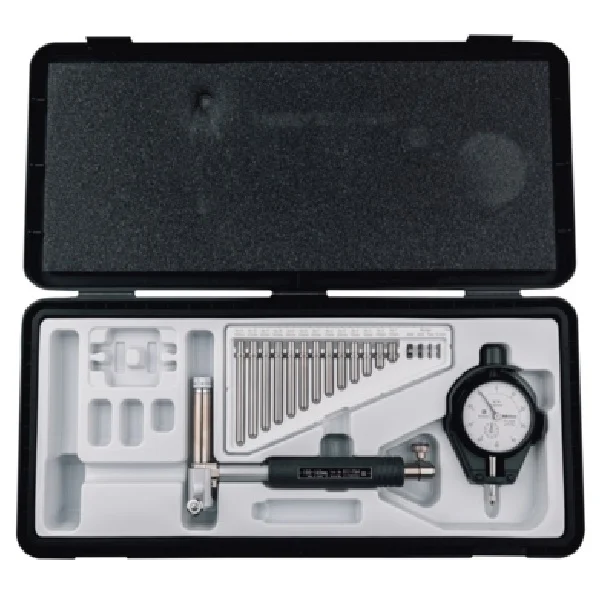

- Supplied in a fitted plastic case
The Mitutoyo short-leg bore Gauge is ideal for measuring the inside dimensions of shallow bores and holes. Due to its short-leg design, this bore Gauge is more compact, lighter, and easier to use than bigger bore Gauges while maintaining excellent accuracy. A two-point contact system detects geometry anomalies such as ovalness and taper.
Dimensions:
Technical Details
| Inch-Metric | Metric |
| Range | 100 – 160mm |
| Graduation | 0.01 mm |
| Stroke of Contact Point | 1.6 mm |
| Measuring Depth | 50 mm |
| No. Dial Indicator | 2046AB |
| Number of Anvils | 13 |
| Accuracy | 2 µm |
| Repeatability | 0.5 µm |
| Digital/Analog | Analog |
| Mass | 460 g |
