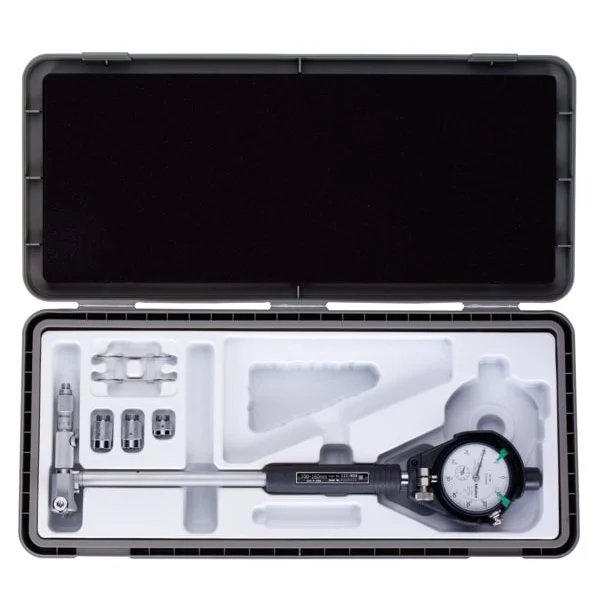

The Mitutoyo bore gage with micrometer head delivers a wide range of bore measurement capabilities at high accuracy to .00008″. Interchangeable anvils constructed of alloy steel attach to the micrometer head for accurate dimensional setting. The anvils feature a carbide-tipped ball for better measurement reliability and longevity.
Features:
- Large designed hollow grips are easier to hold and reduce heat transfer from the operator for better accuracy
- Models with dial indicators are fully protected by a rugged cover
- Gage stem diameter is .375″
- Interchangeable anvils are constructed of alloy steel with carbide-tipped measuring faces for added accuracy and durability
- Includes various anvils and spacers depending on size of gage ordered
Technical Details
| Range: | 10-16″ |
| Graduation: | 0.0001″ |
| Dial Gage: | 2923AB-10 |
| Max Measuring Force: | 6N |
| Max Guide Force: | 15N |
| Mic head travel: | 1″ |
| Sub anvil: | 2, 1″ |
