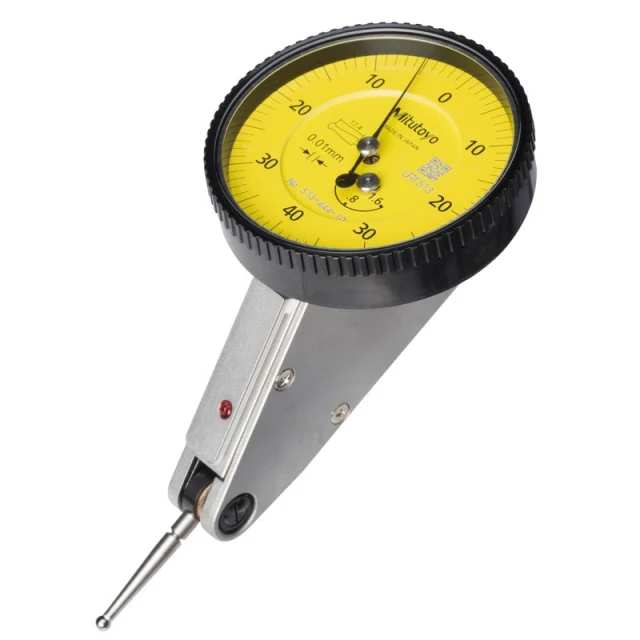

Mitutoyo 513-444-10E Series 513 Dial Test Indicator, 1.6mm

Mitutoyo, 513-444-10E, Series 513 Horizontal Type Dial Test Indicator, 1.6mm, Basic Set, 20° Tilted Face

513-444-10E Includes Only:

• A fitted plastic case
• Dial test indicator
• Contact point, ø2mm, Carbide
• Knurled clamp ring
• Stem, ø8mm

Features:

• The horizontal indicator has a 20° tilted face
• The universal holder allows easy hole centering
• Dial face always faces upward when the indicator is rotated for easy reading
• The no-clutch structure provides automatic reversal of measuring direction
• O-ring seal and bonding of the bezel and crystal protects against dust and oil while rotating smoothly
• Contact point length is printed on the dial face to avoid accuracy issues
• Contact point holder prevents backlash
• The contact point is carbide tipped for lasting accuracy, durability
• Crystal is glare-free with a scratch-resistant coating

These specialty dial test indicators have a reversible measuring direction and adjustable contact point making them ideal for measuring surface variations in narrow or recessed areas with high precision. Their one-piece movement provides high-impact resistance and better durability, while jeweled bearings deliver high sensitivity and quick response.
