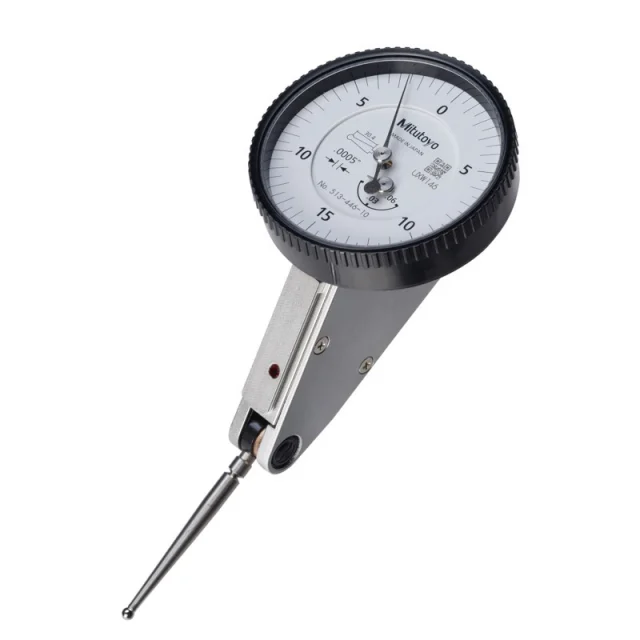

Mitutoyo, 513-446-10A, Series 513 Horizontal Type Dial Test Indicator, 0-0.06″, Plus Set, Long Stylus, Black on White, 20° Tilted Face
513-446-10A Includes Only:
- A fitted plastic case
- Dial test indicator
- Contact point, ø2mm, Carbide
- Knurled clamp ring
- Stem, ø8mm
- Contact point, ø1mm carbide
- Contact point, ø3mm carbide
- Stem, ø4mm
Features:
- The horizontal indicator has a 20° tilted face
- The universal holder allows easy hole centering
- Dial face always faces upward when the indicator is rotated for easy reading
- The no-clutch structure provides automatic reversal of measuring direction
- O-ring seal and bonding of the bezel and crystal protects against dust and oil while rotating smoothly
- Contact point length is printed on the dial face to avoid accuracy issues
- Contact point holder prevents backlash
- The contact point is carbide tipped for lasting accuracy, durability
- Crystal is glare-free with a scratch-resistant coating
These specialty dial test indicators have a reversible measuring direction and adjustable contact point making them ideal for measuring surface variations in narrow or recessed areas with high precision. Their one-piece movement provides high-impact resistance and better durability, while jeweled bearings deliver high sensitivity and quick response.
Technical Details
| Dimensions | |
|
|
| Units | Inch |
| Contact point length | 0.65″ |
| Graduation | 0.0005″ |
| Plus set | Yes |
| Min Range | 0mm |
| Max Range | 0.06″ |
| Dial reading | 0-15-0 |
| Measuring Force | 0.3 or lessN |
