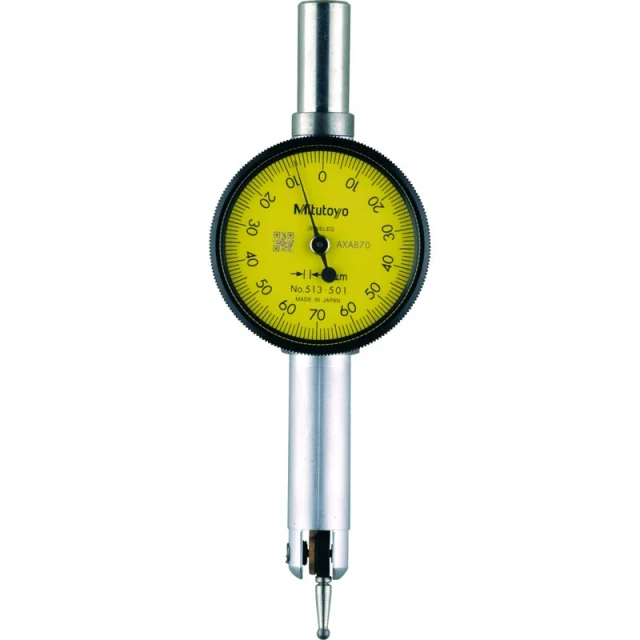

Mitutoyo 513-501T Series 513 Dial Test Indicator, 0.14mm, Full Set

Mitutoyo, 513-501T, Series 513 Dial Test Indicator, Horizontal Pocket Type, 0-0.14mm, Full Set

513-501T Includes Only:

• A fitted plastic case
• Dial test indicator

Features:

• The no-clutch structure provides automatic reversal of measuring direction
• O-ring seal and bonding of the bezel and crystal protects against dust and oil while rotating smoothly
• The contact point is adjustable within 220° of the axis
• Contact point holder prevents backlash
• The contact point is carbide tipped for lasting accuracy, durability
• Crystal is glare-free with a scratch-resistant coating

The Mitutoyo pocket dial test indicator has a reversible measuring direction and adjustable contact point to measure surface variations in narrow or recessed areas. The pocket type indicator has a horizontal face parallel to the axis, and three dovetail mounts allow for horizontal or vertical mounting from the front, top, or back of the indicator. The indicator’s one-piece movement provides high-impact resistance and better durability, while jeweled bearings deliver high sensitivity and quick response.
