Mitutoyo 516-935-26 Steel Rectangular Micrometer Gage Block Set

Mitutoyo, 516-935-26, Steel Rectangular Micrometer Inspection Gage Block Set

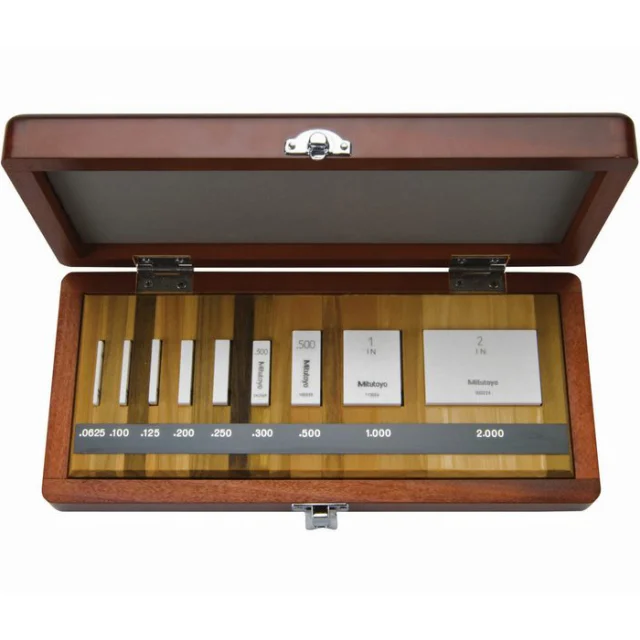

516-935-26 Includes Only:

• A fitted wooden case
• Gage Blocks: 0.500″, 1″, 0.0625″, 0.100″, 0.125″, 0.200″, 0.250″, 0.300″, 2″

Features:

• Can be measured in both vertical and horizontal position
• Innovative lapping techniques give these gage blocks exceptional flatness and ideal surface roughness
• Specific, repeated heat treatment of steel blocks reduce deterioration change over time
• Black characters on gage blocks are inscribed by laser and clearly visible
• Provided with Inspection Certificate

The Mitutoyo Micrometer Inspection Gage Block set is used to inspect a variety of micrometers with high accuracy. These gage blocks can be stacked for either horizontal or vertical measurements. The Mitutoyo steel gage blocks are constructed of high-carbon with superior surface qualities and corrosion resistance. Parallelism can be measured by attaching the optional optical parallel to the gage block set.
