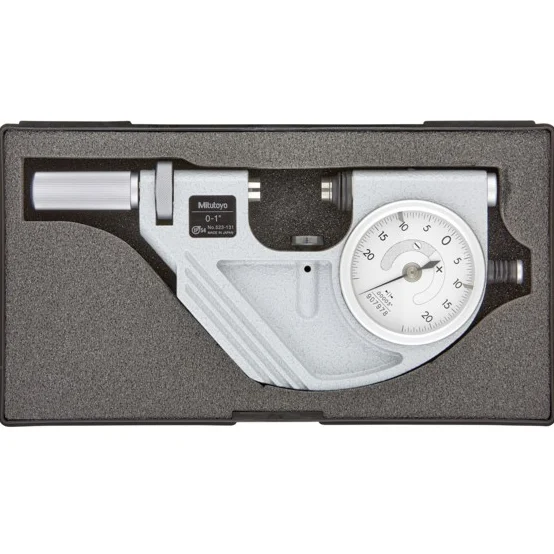

523-131 Includes Only:
- A carrying case
- Dial Snap Meter
Features:
- Dial indicator for Go/No-Go tolerance inspection is highly accurate and easy to read
- Carbide facing on the spindle and anvil resists wearing to keep surfaces flatter with longer accuracy
- Satin chrome finish on the thimble and sleeve resists rust and reduces glare
- IP54 protection resists debris, dust, and water
The spindle, anvil, and frame are constructed of hardened steel to resist flexing so results are more accurate. The anvil trigger has a balanced spring and operates easily with a button on the anvil side of the frame. The retractable anvil allows for faster workpiece throughput without sacrificing accuracy.
Technical Details
| Units | Inch |
| Dimensions |
|
| Technology | Mechanical |
| IP Rating | IP54 |
| Measuring Force | 5-10 N |
| Measuring Faces | Carbide tipped |
| Range | 0-1″ |
| Dial indication accuracy | 0.00005″ |
| Graduation | 0.00005″ |
| Mass | 710 g |
| Flatness | 0.000012″ |
| Parallelism | 0.000024″ or less |
| Dial reading | 0.00005″ |
| Indicating Range | ± 0.0023″ |
| Indication Repeatability | 0.00002″ |
