Features:
- The signal cable outlet can be positioned on either side of the detector head, allowing the signal cable to be connected from either direction
- Connectable to the KA counter or PSU-200
- IP53 rated for protection from dust and spraying water

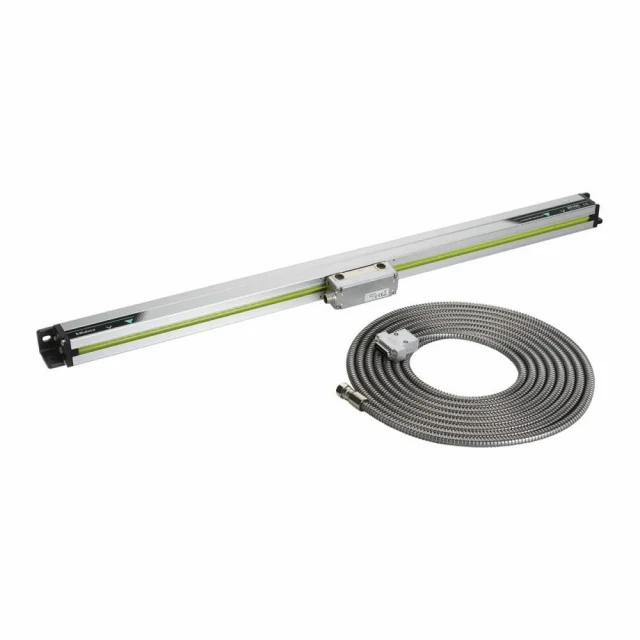

Enhanced vibration resistance makes the AT103 linear scale more durable while innovative rubber lips keep dust and contaminants out of the unit. An armored signal cable is used to connect the scale unit to a DRO counter for safe, accurate operations in harsh shop environments. The AT103 series linear scale is ideal for a wide range of applications in a variety of settings.
Technical Details
| Type: | Standard Type – Standard Accuracy |
| Resolution: | 0.01 to 0.0001mm / .001 to .000005″ |
| Output Signal: | Two 90 degree phase-shifted sinusoidal signals |
| Signal Output Pitch: | 20µm |
| Scale Reference Point: | Output in 50mm pitch |
| Protection Level: | IP53 |
| Operating Temperature Range: | 0 to 45°C |
| Connectable counter: | KA Counter, KLD200 Counter, PSU-200 |
| Max Range: | 450mm/18″ |
| Accuracy: | 3+3L/1000 (“L” is the effective range of the selected scale in mm)µm |
| Maximum Response Speed: | 120m/min |
| Signal Cable Length: | 3m |
