Features:
- Slim spar type with unit sectional dimensions of 22x35mm
- Dimensionally compatible with AT116 linear scale units
- Innovative rubber lips keep contaminants out to eliminate dust
- An armored signal cable is used to connect the scale unit to the DRO counter for safe operation in harsh shop environments
- The signal cable outlet can be positioned on either side of the detector head, allowing the signal cable to be connected from either direction
- Connectable to the KA counter or PSU-200
- IP53 rated for protection from dust and spraying water

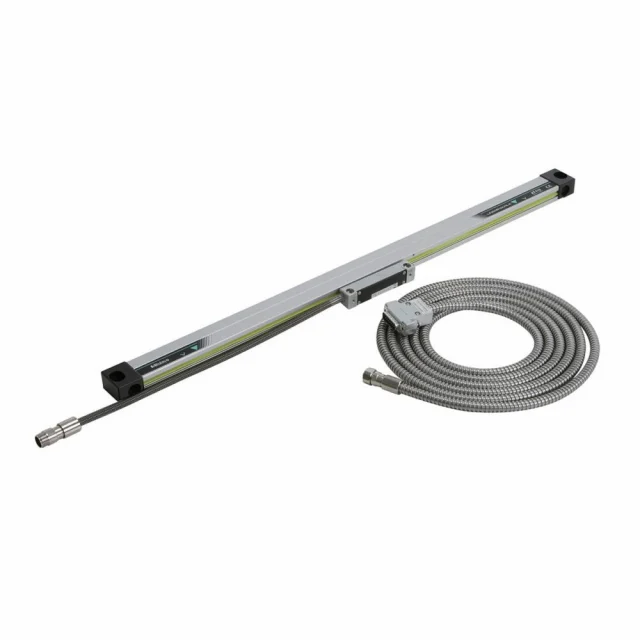

The LED light source and phototransistor receptor on the AT113 linear scale provides accurate results in a variety of applications. Its slim design allows for installation in smaller spaces, and the enhanced vibration resistance offers added durability for shop floor use.
Technical Details
| Type: | Slim Spar Type – Standard Accuracy |
| Resolution: | 0.01 to 0.0001mm / .001 to .000005″ |
| Output Signal: | Two 90 degree phase-shifted sinusoidal signals |
| Maximum Response Speed: | 120m/min |
| Signal Output Pitch: | 20µm |
| Scale Reference Point: | Output in 50mm pitch |
| Protection Level: | IP53 |
| Operating Temperature Range: | 0 to 45°C |
| Connectable counter: | KA Counter, KLD200 Counter, PSU-202 |
| Max Range: | 200mm / 8″ |
| Accuracy: | 3+3L/1000 (“L” is the effective range of the selected scale in mm)µm |
| Signal Cable Length: | 3m |
