Features:
- Super slim spar type with unit sectional dimensions of 15.4x30mm
- The signal cable outlet can be positioned on either side of the detector head, allowing the signal cable to be connected from either direction
- Connectable to the KA counter or PSU-200
- IP53 rated for protection from dust and spraying water

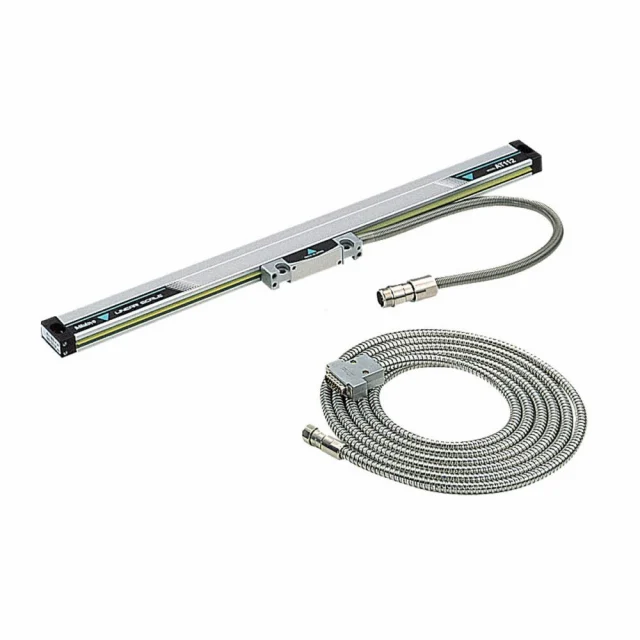

Enhanced vibration resistance makes the AT112F linear scale more durable while innovative rubber lips keep dust and contaminants out of the unit. An armored signal cable is used to connect the scale unit to a DRO counter for safe, accurate operations in harsh shop environments. Extra-slim construction allows installation of the AT112-F series in narrow, confined spaces.
Technical Details
| Type: | Super Slim Spar Type – High Accuracy |
| Resolution: | 0.01 to 0.0001mm / .001 to .000005″ |
| Accuracy: | 3+3L/1000 (“L” is the effective range of the selected scale in mm)µm |
| Output Signal: | Two 90 degree phase-shifted sinusoidal signals |
| Maximum Response Speed: | 50m/min |
| Signal Output Pitch: | 20µm |
| Scale Reference Point: | Output in 50mm pitch |
| Protection Level: | IP53 |
| Operating Temperature Range: | 0 to 45°C |
| Signal Cable Length: | 3m |
| Connectable counter: | KA Counter, KLD200 Counter, PSU-201 |
| Cross-section size: | 15.4x30mm |
| Signal Cable Length: | 470mm/18,5″ |
