Features:
- The preset function sets display at any value with counting beginning at the preset value
- Multifunctional counter equipped with zero-setting, presetting, and Go/No-Go judgment
- RS-232C and USB are equipped as standard, making data transfer to a PC possible
- A multi-point (max. 12 points) measuring system can easily be configured with the built-in RS link networking function
- Panel-mountable DIN size allows for easy system integration
- Peak mode feature: Max, Min, and TIR (can be toggled)
- Compatible gage heads (depending on model) include: LG, LGB, LGD, LGE, LGF, LGK, LGM, LGS, or SPC output gages
- Go/No-Go LED

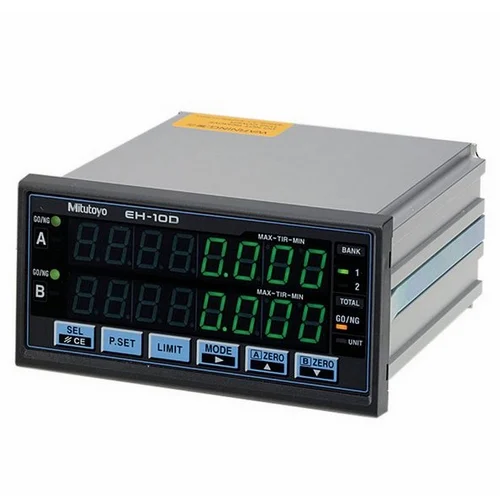

The multi-function display abilities of the Mitutoyo EH Counter deliver excellent versatility for a range of measuring and display applications. Equipped with zero-setting, presetting, and tolerance judgment which sets the displayed value at any position of the spindle, making multiple measurements faster without losing accuracy. USB output allows connection to the optional Sensopak live-reading software.
Technical Details
| Display | Sign plus 8 digits (Green LED) |
| Operating Humidity Condition Range | RH20 to 80% (no condensation) |
| Operating Temperature Range | 0 to 40°C |
| Power Consumption | 8.4W (max 700mA), verify 1A |
| Storage Humidity Range | RH 20 to 80% (no condensation) |
| Storage Temperature Range | -10 to 50°C |
| Tolerance Judgement | Yes |
| Data output | Analog, Digimatic, Go/NG, I/O, RS-232C, USB |
| Dimensions | 144 x 72 x 156.7 mm |
| Display-Tolerance Judgement | LED on display (3 steps amber, green, red; 5 steps amber, amber flashing, green, red flashing, red) |
| External Control | Hold, Hold per axis, Open-collector or no-voltage contact signal, Peak mode, Peak reset, Preset |
| Applicable gage | LGE, LGF, LGB, LGK, LGM, LG |
| Data Input | TTL |
| Gage Capacity | 2 |
| Mass | 800 g |
| Max Resolution | 0.000005″ / 0.1 µm |
| Number of Axes Displayed | 2 |
| Number of Gage Inputs | 2 |
