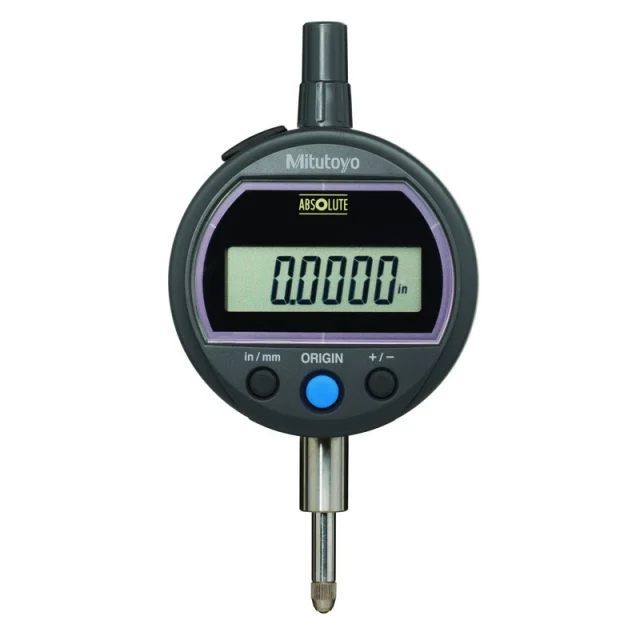

Mitutoyo 543-507B Absolute Digimatic Indicator ID-S, 8 mm Steam Dia

Mitutoyo, 543-507B, Absolute Digimatic Digital Solar Indicator ID-S, Flat Back, 0-0.5″, 8 mm Steam Diameter

543-507B Includes Only:

• A fitted plastic case
• Digital indicator

Features:

• Solar power and battery backup allows for reliable, longer use in any location
• The solar panel is hard-coated for increased durability
• Absolute (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
• Origin reset is not required even when data is re-displayed after a disappearance due to insufficient illumination during the use
• SPC output function allows for fast and easy data management in real-time
• Functions include Origin Set, Counting Direction Switching
• Unlimited response speed eliminates over-speed errors
• IP42 for protection against objects greater than 1 mm and water

The Mitutoyo Absolute Digimatic solar-powered indicators are highly accurate and easy to use while eliminating the need of a battery. Measurements are shown on an impact-resistant LCD display. The Mitutoyo ABS digital ID-S digital indicators provide up to a 12.7 mm/.5″ range in a compact design that is easy to use and read. Large pushbuttons provide direct, easy access to all of the indictor’s functions, and readings are shown on a large 9 mm LCD display. The Absolute sensor automatically restores the last origin position when the indicator is turned on, allowing for the quick-start operation which is useful in multipoint measurements. The solar power source is ready for use from 40 lux illumination and a supercapacitor maintains a reserve of about 3.5 hours under low light conditions.
