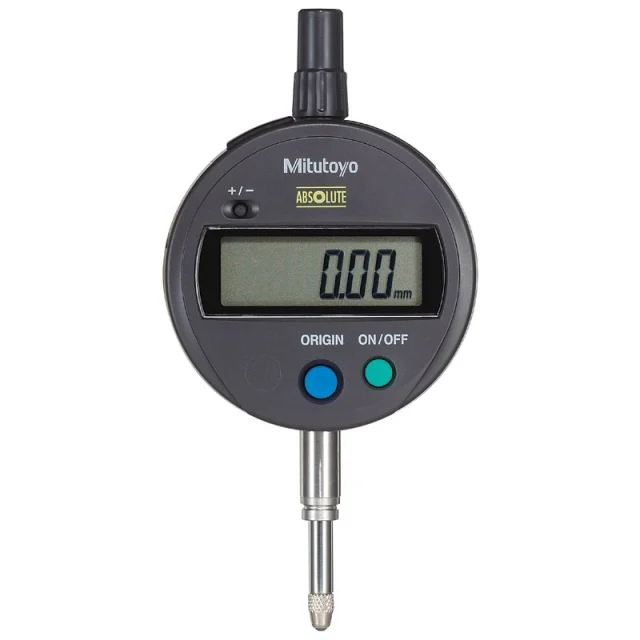

Mitutoyo, 543-781. Absolute Digimatic Digital Indicator ID-S, 0-12.7 mm, Lug Back
543-781 Includes Only:
- A fitted plastic case
- Digital indicator
Features:
- Absolute (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
- Origin reset is not required even when data is re-displayed after a disappearance due to insufficient illumination during the use
- SPC output function allows for quick and easy data management in real-time
- Functions include Origin set, zero sets, counting direction switching, power On/Off, data output
- Alarm: Low voltage, Counting value composition error, over-flow error
- Unlimited response speed eliminates over-speed errors
- IP42 for protection against objects greater than 1 mm and water
The Mitutoyo Absolute Digimatic ID-S indicators are highly accurate and easy to use for measuring short linear distances in many different applications. Measurements are shown on an impact-resistant LCD display. The Mitutoyo ABS digital ID-S digital indicators provide up to a 12.7 mm / .5″ range in a compact design that is easy to use and read. Large pushbuttons provide direct, easy access to all of the indictor’s functions, and readings are shown on a large 9 mm LCD display. The Absolute sensor automatically restores the last origin position when the indicator is turned on, allowing for the quick-start operation which is useful in multipoint measurements.
Technical Details
| Units | Metric |
| Dimensions | |
| Min Range | 0 mm |
| Max Range | 12.7 mm |
| Resolution | 0.01 mm |
| Accuracy | ± 0.02 mm |
| Stem diameter | 8 mm |
| Thread type | M2.5 X 0.45 |
| Measuring Force | 1.5 or lessN |
| Back Type | Lug Back |
| ISO/JIS type | Yes |
| SPC Output | Yes |
| Display | LCD |
| Length Standard | Absolute electrostatic capacitance type linear encoder |
| Battery | SR44 (1 pc.) 938882 |
| Battery life | Approx. 20,000 hours under normal use |
| Max Response Speed | Unlimited |
