Features:
- Automatic workpiece detection starts measuring when a workpiece advances into the specified measuring area
- Capable of statistical analysis such as average, maximum value, minimum value, range (max. – min.), and more
- Segment measurement (7 points) or edge measurement (1 to 255 edge) can be selected
- Abnormal value elimination function removes false readings for more accurate measurements
- 100 tolerance values, preset values, or settings can be stored for single operation recall

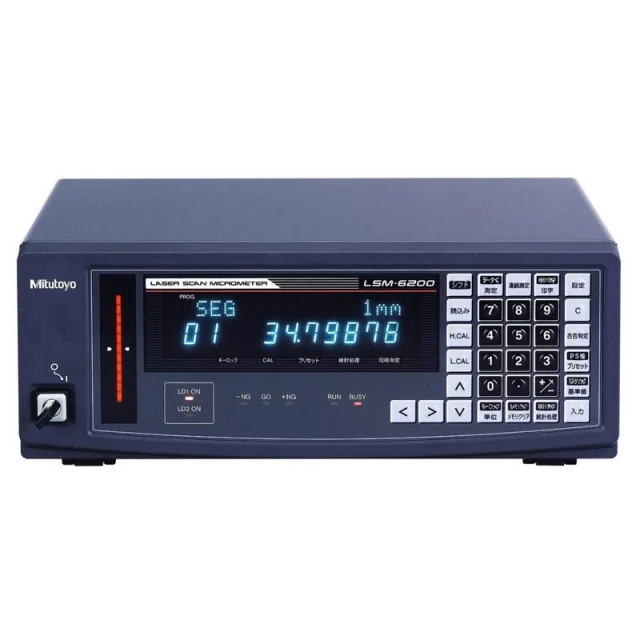

The Mitutoyo LSM-6200 display unit continuously monitors set-up values and provides readouts for two measurement values simultaneously. The Mitutoyo LSM-6200 series display provides excellent versatility for real-time laser scan micrometer measurement readouts. Its dual-display design allows setup values to be monitored continuously. A simultaneous measurement function allows two measurement value ite ms to be displayed on the sub-display.
Technical Details
| Type | inch/ mm |
| Dimensions | |
| Display | 16-digit fluorescent tube (for measurement) & 11-digit fluorescent tube (sub-display) |
| Segment designation | Seg.1 to Seg.7 (Seg.1 – Seg.3 for transparent objects) |
| Edge designation | 1 to 255 edges can be detected*1 |
| Averaging times | Arithmetical average |
| Go/No-Go judgment | Nominal value ± tolerance setting, upper & lower limits setting, multi-limit setting |
| Measurement mode | Waiting, single measurement, continuous measurement |
| Statistical calculation | Maximum measurement (MAX), minimum measurement (MIN), mean, range (MAX-MIN), standard deviation |
| Power supply | 120V AC ± 10%, 60Hz, 40VA |
| Data output (as standard) | Via RS-232C and I/O-Analog interfaces |
| Operating temperature | 0°C – 45°C |
| Operating humidity | 35 – 85% RH (with no condensation) |
| Mass | 5kg (11lbs.) |
