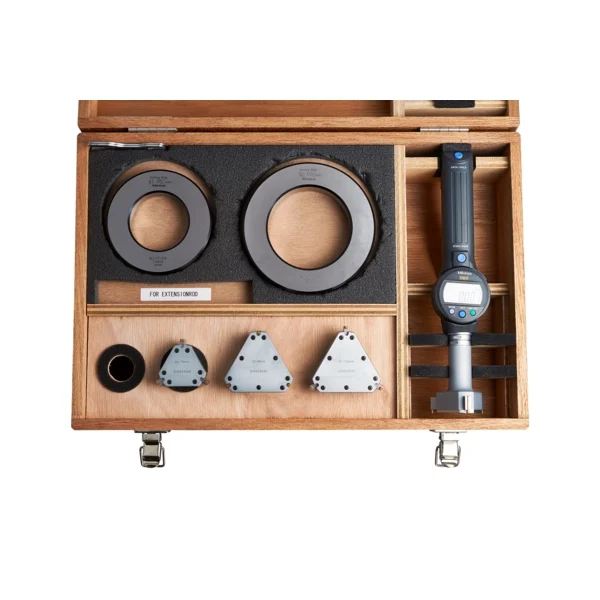

Mitutoyo, 568-927, Series 568 Digital ABS Borematic Set 50-100mm, Interchangeable Head Set
Features:
- Contact points are constructed of TiN for impact resistance and better durability
- Design allows for measurements closer to the bottom of blind bore holes
- SPC output function offers quick and easy data management in real time
- ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
- Elimination of overspeed errors provides a higher measurement reliability and repeatability
The Borematic bore gage features a large LCD display that rotates 330° for easy reading and an activation handle with a precision-balanced spring that smoothly retracts the anvils when pressed. Titanium Nitride (TiN) coated measuring contact points provide excellent durability and impact resistance and allow the instrument to measure to the bottom of a blind hole. With the ABSOLUTE encoder, once the origin point is set with the ORIGIN button, the Borematic retains the setting for the entire battery life. Repeated origin setting (presetting) is no longer necessary.
Technical Details
| Inch-Metric: | Metric |
| Range: | 50 – 100 mm |
| Digital step: | 0,001 mm |
| Individual ranges: | 50-63 mm 62-75 mm 75-88 mm 87-100 mm |
| Mass: | 1850 g |
| Display: | LCD, character height: 11 mm |
| Measuring face: | Titanium coated hardened steel taper: tungsten carbide |
| Measuring method: | 3-point |
| Setting rings included: | Ø62 mm (177-314) Ø87 mm (177-318) |
| Power supply: | 1 battery SR-44 |
| Battery life: | Approx. 5000 hours |
| Delivered: | Including box, key, 1 battery, certificate of inspection |
| ABS / INC (INC ZERO): | Yes |
| ON/OFF: | Yes |
| Function lock: | Yes |
| DATA (output with cable) / HOLD (display value): | Yes |
| 2 x PRESET: | Yes |
| Digital/Analog: | Digital |
| Data output: | Yes |
| GO/+/-NG judgement: | Yes |
