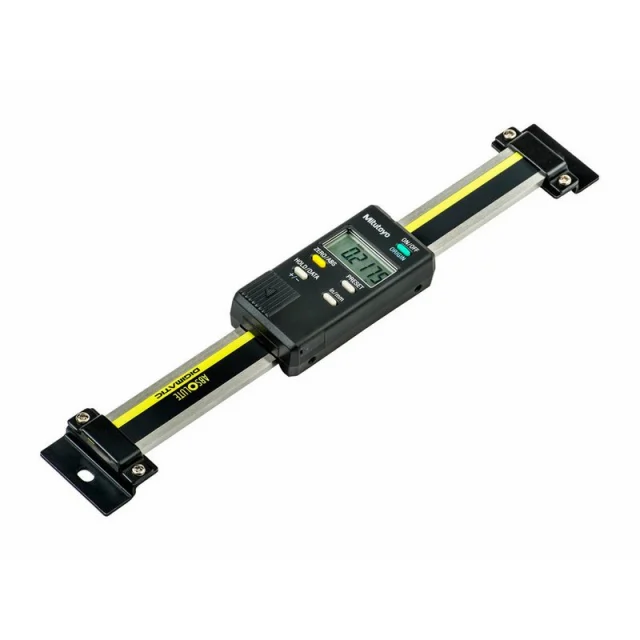

Mitutoyo, 572-576, SDV-E Absolute Digimatic Digital Scale Unit, 0-800 mm / 0-32″, Vertical
Features:
- Origin key allows the setting of an Absolute zero point to be used as a reference in subsequent measurements
- The vertical display according to the scale mounting direction
- Long battery life for easier maintenance
- Equipped with an output port to transfer measurement data to implement in control and gaging systems
- EC counters are as external display units
Applications:
- Machine table positioning
- Drilling machine stroke position
- Tool presetting
- Focus setting on optical instruments
- XY coordinate measurement
- Multi-head applications
The Mitutoyo Absolute Digimatic multi-function vertical linear scale provides accurate linear measurements with digital data output capabilities. The Mitutoyo SDV-E Digimatic multi-function vertical linear scale facilitates mounting on jigs, tools, and small machine tools to enable accurate positioning. A built-in Absolute scale is also included, using the Mitutoyo ABS point, which doesn’t require zero-set when powered on. In addition, Overspeed errors have been eliminated which improves reliability.
Technical Details
| Model | SDV-32″E |
| Units | Metric, Inch |
| Type | Vertical multi-function type |
| Dimensions |
|
| Range | 0-800 mm / 0-32″ |
| Resolution | 0.01 mm / 0.0005″ |
| Accuracy | 0.06 mm / .0025″ |
| Repeatability | 0.01 mm / 0.0005″ |
| Mass | 1710g |
| Depth including the screw on the rear of the display | Less than 3 mm |
