Features:
- Outputs two-phase sinusoidal wave signal, two-phase pulse signal and 1Vp-p at 4μm pitch for versatility
- High-accuracy type, 0.5μm class (effective range up to 300mm)
- Offers a thinner detector head (thickness 11.5mm)

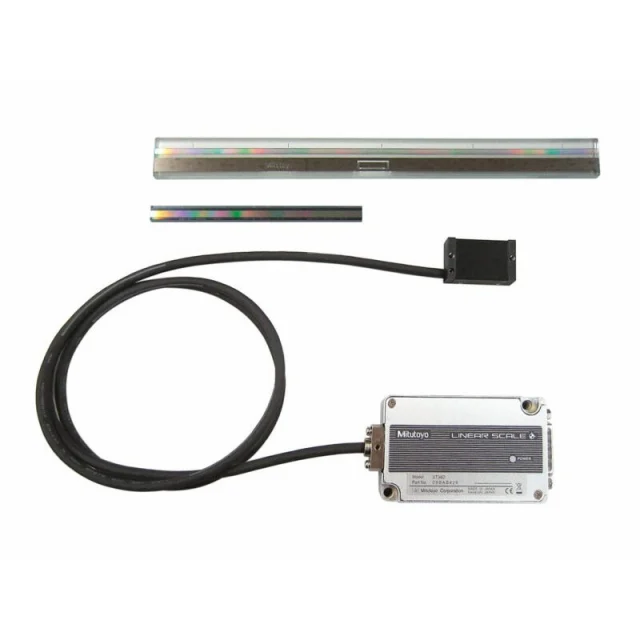

The ST36 linear scale has a maximum effective measurement range of 3000mm making it ideal for use on larger machines. An LED alarm detects overspeed and sinusoidal signal anomalies to protect your machine and workpiece.
Technical Details
| Type: | High Accuracy Type |
| Detection Method: | Reflective photoelectric linear encoder |
| Resolution: | 0.2/ 0.5/ 1/ 5 (Selectable with internal switch)µm |
| Main scale grating pitch: | 8µm |
| Signal Output Pitch: | 4µm |
| Max Response Speed: | 1200mm/s |
| Operating Temperature Range: | 0 to 45°C |
| Operating temperature/humidity range: | 0 to 40°C, RH20 to 80 (no condensation) |
| Storage Temperature Range: | -20 to 60°C |
| Storage temperature/humidity range: | -20 to 60°C, RH20 to 80 (no condensation) |
| Head Cable Length: | 1 (high-flex connecting cable)m |
| Max Range: | 10mm |
| Accuracy: | +/-0.5µm |
| Output Signal: | 2-phase sinusoidal signals |
| Scale Reference Point: | Center Point |
| Effective Range L1: | 10mm |
| Overall Length L2: | 30mm |
