Mitutoyo 64PKA026A KA-200 DRO 2-Axis, Glass Linear Scale Package

Mitutoyo, 64PKA026A, KA-200 DRO 2-Axis KA Counter Grinder Package for Grinding Machines

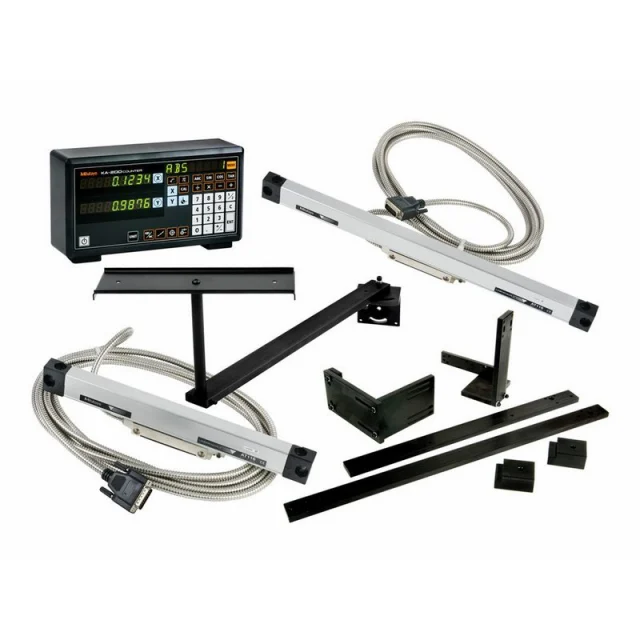

64PKA026A Includes Only:

• KA-200 Counter
• AT116 Glass Linear Scales
• Bracket Kit (refer to page 19)
• Display Arm Kit

Features:

• KA-200 counter can output RS-232C data to a PC, printer, or PLC using an optional code out unit (#09AET993)
• The AT715 electromagnetic linear scales with an IP67 rating

The Mitutoyo 2-axis retrofit grinding package utilizes a KA-200 digital readout with glass linear scales in several different X- and Y-axis travel lengths on manual grinding machines. The KA-200 features Absolute and incremental modes with nine presets each. The AT116 slim spar-type glass linear scales provide automatic displacement measurements.

Technical Details
