Mitutoyo 64PKA037A 2-Axis Lathe System, Linear Scales, 36×6″

Mitutoyo, 64PKA037A, 2-Axis Lathe System, ABS/Glass Linear Scales, 36×6″

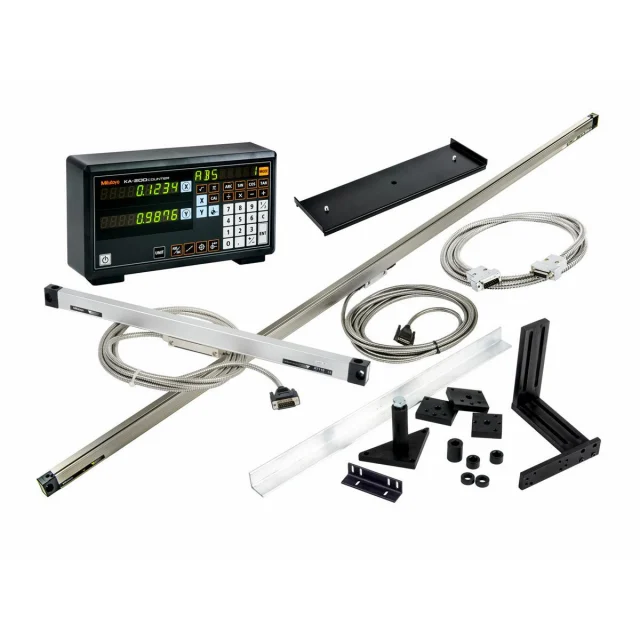

64PKA037A Includes Only:

• KA-200 digital counter,
• AT715/AT103 Z-axis scale,
• AT116 X-axis scale,
• bracket kit, counter stand,
• counter tray and extension cable in kits with 60-in.
• X-axis and longer

Features:

• KA-200 counter can output RS-232C data to a PC, printer or PLC using an optional code out unit (#09AET993)
• The Absolute scale on the AT715 linear scale eliminates the need for origin resetting for faster, more accurate displacement measurements
• IP67 rating on AT715 linear scale fully protects linear scale from water and oil contamination
• IP53 rating on AT103 linear scale better protects against dust and water

The Mitutoyo 2-axis retrofit lathe package utilizes a KA-200 digital readout with slim linear scales in many different X- and Z-axis travel lengths on manual milling machines. The KA-200 features Absolute and incremental modes with nine presets each. The Z-axis uses either an AT715 electromagnetic linear scale or AT103 glass linear scale, depending on the package length. The AT116 slim spar type glass linear scale handles the X-axis displacement.
