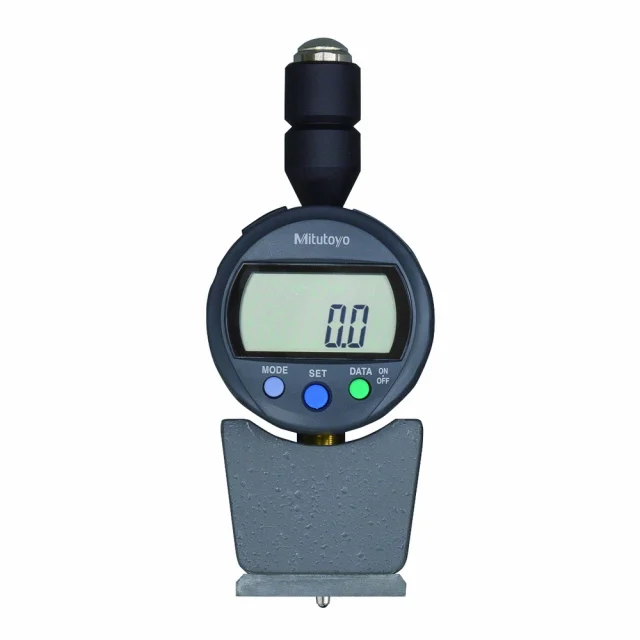

Mitutoyo, 811-330-10, HH-300 Series Shore Durometer Type E Compact/Digital
Features:
- You can use them for testing the hardness of the materials including soft rubber, elastomers, natural rubber, casting resin, neoprene, polyesters, soft PVC, leather, etc.
Technical Details
| Model: | HH-330 |
| Shore Scale: | Shore E |
| Display: | Digital |
| Indenter b: | ø 5 mm |
| Indenter r: | ø 2,5 mm |
| Pressure foot a: | ø 5,4 mm |
| Pressure foot f: | 44 x 18 mm |
| Indenter protrusion: | 2,5 mm |
| Spring force WE, WA, WD: |
WE=550+75 HE [mN] |
| Dimensions (WxDxH): | 147 x 59 x 40 mm |
| Mass: | 0.29 kg |
| Connector cable for: | HH-300 Series |
| PIN: | Flat |
| U-WAVE-T: | 02AZD790E |
| USB-ITN: | 06AFM380F |
| DP-1VA (264-505): | 959149 |
| IT-016U 264-016-10 Hardmatic table: | 937387 |
