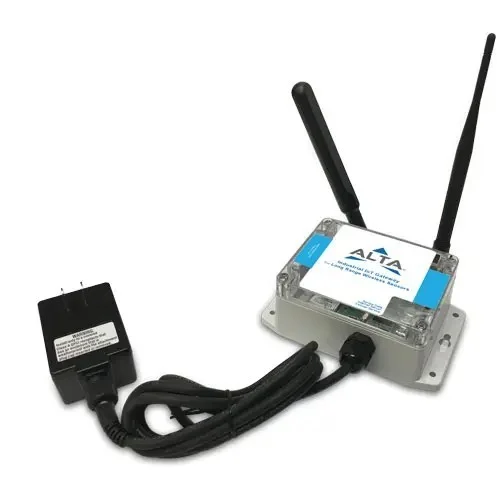

Name: Monnit MNG2-9-CME-IN-ND ALTA 900 MHz Industrial IoT Gateway No Data
SKU: MNG2-9-CME-IN-ND
Availability: InStock

Monnit, MNG2-9-CME-IN-ND, ALTA 900 MHz Industrial IoT Gateway No Data All Americas

Cellular Technology	LTE CAT-M1 / NB2 module for global use in bands: Band 1 Band 2 Band 3 Band 4 Band 5 Band 8 Band 12 Band 13 Band 18 Band 19 Band 20 Band 25 Band 26 Band 27 Band 28 Band 66 Band 71 Band 85
SIM Card Compatibility	Micro-SIM (3FF) 15 mm x 12 mm x 0.76 mm
Cellular Antenna Type	Connector: SMA / Gain: 5.0 dBi
GNSS Antenna Type	Internal Mount Active (28db) Ceramic Patch
GNSS Satellites Supported	GPS GLONASS BeiDou Galileo QZSS
Power Interrupt	Magnetic Reed Switch (see page 4 for details)
Input Power	90-240 VAC / 0.2A max (15W), 5.9VDC / 2500mA max
Power Supply Size	2.0 x 3.2 x 1.2 inch (50 x 80 x 30 mm) with 59 inch (1500 mm) cord
Battery Type	2900 mAh Rechargeable Lithium Polymer
Battery Duration	Up to 60 hours
Battery Cycle Life	500 times
Battery Safety	IEC62133
LEDs	Sensor Data Server Status Cellular Status
Device Memory	Up to 32,000 sensor messages Stored during Internet outage Transferred when connection is restored
Enclosure	Polycarbonate NEMA 1 NEMA 2 NEMA 4 NEMA 4x NEMA 12 NEMA 13 Sealed and weatherproof
Weight	16.9 ounces
Operating Temperature	-20 to 55°C (-4 to 131°F)
Charging Temperature	0 to 45°C (32 to 113°F)
Storage Temperature	-20 to +60°C (-4 to 140°F)
Transmit Power (EIRP)	50 mW (900 MHz) 25 mW (868 MHz) 10 mW (433 MHz)
Antenna Type	Connector: RP-SMA / Gain: 3.0 dBi (900/868 MHz) 2.5 dBi (433 MHz)
Wireless Range	1,200+ ft. non-line-of-sight
Security	Encrypt-RF (256-bit key exchange and AES-128 CBC)
