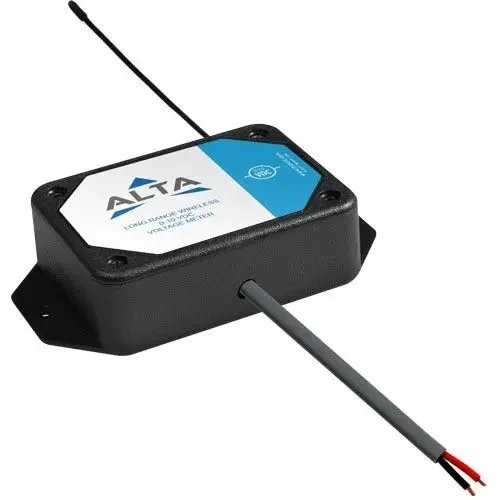

Monnit MNS2-9-W2-VM-010 Wireless 0-10 VDC Voltage Meter

Monnit, MNS2-9-W2-VM-010, Wireless 0-10 VDC Voltage Meter AA Battery Powered

MNS2-9-W2-VM-010 Includes Only:

• Wireless Sensor Mounting Hardware
• 2 x AA Batteries

Features:

• Measurement Range: 0 to 10 VDC
• Resolution: 1 mV
• Accuracy:
  • Uncalibrated: ± 2.0% of reading ± 0.002 VDC
  • Calibrated: ± 0.5% of reading ± 0.002 VDC
• Configurable thresholds for critical condition monitoring
• Wireless range of 2,000+ feet through 18+ walls
• Frequency-Hopping Spread Spectrum (FHSS)
• Best-in-class interference immunity
• Best-in-class power management for longer battery life
• Encrypt-RF Security (Diffie-Hellman Key Exchange + Advanced Encryption Standard (AES)-128 Cipher Block Chaining (CBC) for sensor data messages)
• Sensor logs 2000 to 4000 readings if the gateway connection is lost (non-volatile flash, persists through power cycling):
  • 10-minute Heartbeats = ~ 22 days
  • 2-hour Heartbeats = ~ 266 days
• Automatic over-the-air updates to sensor firmware (future-proof)

Applications:

• Battery health
• Voltage measurement
• Transducer measurement
• Machinery
• Electrical motors

The ALTA Wireless 5 and 10 VDC Voltage Meter measures the single-ended DC voltage across its two leads based on a user-configurable time interval or Heartbeat. On every Heartbeat, the sensor converts the analog voltage signal to a digital voltage measurement.

The ALTA 5 and 10 VDC Voltage Meter can be calibrated for improved accuracy. Also, remember to remove any active voltages from the measurement leads when replacing batteries or performing other maintenance.
