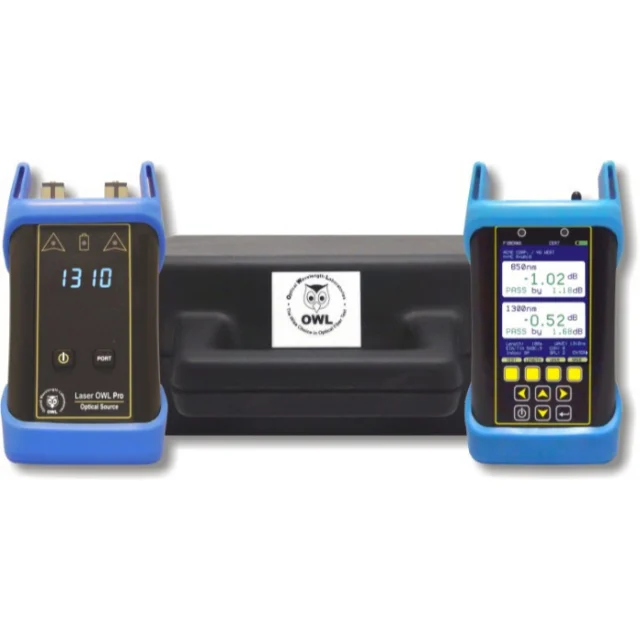

OWL KF7-L35 Fiber OWL 7 Laser OWL Test Kit, +5 to -70 dBm, FP Laser

Optical Wavelength Labs (OWL), KF7-L35, Fiber OWL 7 Laser OWL Test Kit, +5 to -70 dBm, FP Laser

KF7-L35 Includes Only:

• Power Meter:
  • Fiber OWL 7
• Light Source:
  • Laser OWL Pro
• Hard-shell carrying case
• Protective rubber boots
• USB download cables and battery chargers
• USB flash drive containing OWLView software and product documentation
• NIST certificate of calibration

Features:

• Standards-based link certification for multimode and singlemode fiber links
• Color LCD indicates PASS / FAILstatus based on color
• Unlimited job configurations
• User-friendly Link Wizard with helpful color on-screen diagrams to help guide the setup process
• Up to 10,000 test readings can be stored in memory
• Upgradeable to length testing, a critical factor for link budget calculation
• Prints official certification reports via OWLView certification software
• Re-chargeable Lithium Polymer battery
• NISTTraceable

Applications:

• Full-featured Tier 1 fiber link certification
• Optical loss (attenuation) measurement
• Optical power measurement
• Continuity testing
• Patch cord verification

Many fiber optic network bids and Requests For Quote (RFQ) are citing cabling standards to specify the set of guidelines (such as fiber length) that the network installer must follow during the network installation. Adherence to such standards is meant to ensure the quality of the installation and guarantee that the network will perform as it was designed. The process of testing a network installation to ensure its adherence to specified standards is called certification, and often requires hard-copy documentation as proof of adherence to standards. The Fiber OWL 7 Laser OWL Test Kit contains the tools necessary for certifying fiber optic links against a myriad of popular cabling standards in singlemode networks, commonly referred to in the industry as Tier 1 certification. The Fiber OWL 7 (p/n: F7) optical power meter is multimode and singlemode ready, and contains a user-friendly Fiber Link Wizard with color diagrams to guide the setup process, calculate the link budget, and set the optical reference. Up to 10,000 fiber runs may be stored in internal memory, and can be downloaded to a PC for report generation with OWLView software. The universal detector port on the F7 comes with 2 adapter caps, one for 2.5mm connectors such as SC, ST, and FC, and the other for 1.25mm connectors such as LC. The Laser OWL Pro (p/n: LP35) fiber optic light source is designed for accurate testing and certification of singlemode networks. The light source outputs are temperature-stabilized for accurate measurements. The Fiber OWL 7 Laser OWL Test Kit contains the tools necessary for certifying fiber optic links against a myriad of popular cabling standards in singlemode networks, commonly referred to in the industry as Tier 1 certification. The LP35 comes configured with SC connector ports.

Technical Details
