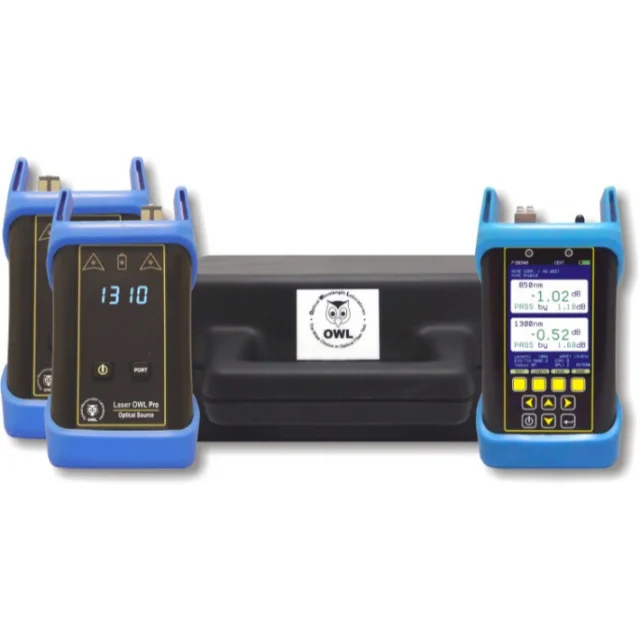

KF7VD8X-L3X Includes Only:
- Power Meter: Fiber OWL 7V
- Light Source: Dual OWL Pro 850 and Laser OWL Pro 1310
- Hard-shell carrying case
- Protective rubber boots
- USB download cables and battery chargers
- USB flash drive containing OWLView software and product documentation
- NIST certificate of calibration
Features:
- Standards-based link certification for multimode and singlemode fiber links
- Color LCD indicates PASS / FAILstatus based on color
- Unlimited job configurations
- User-friendly Link Wizard with helpful color on-screen diagrams to help guide the setup process
- Auto-wavelength recognition and data storage reduces testing time and human error
- Up to 10,000 test readings can be stored in memory
- Integrated length tester for accurate end-to-end link length measurements, a critical factor for link budget calculation
- Integrated visual fault locator for easy troubleshooting
- Prints official certification reports via OWLView certification software
- Re-chargeable Lithium Polymer battery
- NISTTraceable
Applications:
- Full-featured Tier 1 fiber link certification
- Optical loss (attenuation) measurement
- Optical power measurement
- Continuity testing
- Patch cord verification
- Fiber optic link length measurement
- Visual fault location
Many fiber optic network bids and Requests For Quote (RFQ) are citing cabling standards to specify the set of guidelines (such as fiber length) that the network installer must follow during the network installation. Adherence to such standards is meant to ensure the quality of the installation and guarantee that the network will perform as it was designed. The process of testing a network installation to ensure its adherence to specified standards is called certification, and often requires hard-copy documentation as proof of adherence to standards. The Fiber OWL 7V 850/1310 Test Kit contains the tools necessary for certifying fiber optic links against a myriad of popular cabling standards in singlemode and multimode networks, commonly referred to in the industry as Tier 1 certification. The Fiber OWL 7V (p/n: F7V) optical power meter is multimode and singlemode ready, and contains a user-friendly Fiber Link Wizard with color diagrams to guide the setup process, calculate the link budget, and set the optical reference. Up to 10000 fiber runs may be stored in internal memory, and can be downloaded to a PC for report generation with OWLView software. The universal detector port on the F7V comes with 2 adapter caps, one for 2.5mm connectors such as SC, ST, and FC, and the other for 1.25mm connectors such as LC. The length testing port and visual fault locator port are LC. The Dual OWL Pro 850 (p/n: DP8X) and Laser OWL Pro 1310 (p/n:LP3X) fiber optic light sources are designed for accurate testing and certification of multimode (850nm) and singlemode (1310nm) networks. The light source outputs are temperaturestabilized for accurate measurements. These sources come configured with SC connector ports.
Technical Details
| Fiber OWL 7V Optical Power Meter | |
| Detector Type | InGaAs |
| Calibrated Wavelengths | 850, 980, 1300, 1310, 1490, 1550, 1625 |
| Measurement Range | +5 to -70 dBm |
| Accuracy | ±0.15 dB |
| Display Resolution | 0.01 dB |
| Battery Life | Up to 50 hours (Lithium Polymer) |
| Detector Connector Type | 2.5mm/1.25mm universal |
| Data Storage | Up to 10000 data points |
| Displayed Measurement Units | dBm, dB, mW, µW, nW |
| Modes of Operation | CERT, LOSS, OPM |
| Length Test Range / Accuracy | up to 25 km / ±2.5 m |
| Length Tester Connector Type | LC |
| Display Type | Hi-resolution Color LCD |
| Auto-Shutdown | Yes |
| Operating Temperature | -10 to 55° C |
| Storage Temperature | -30 to 70° C |
| Dimensions | 2.9 x 4.49 x 1.3 in. (72.9 x 112.3 x 31.8 mm) |
| Weight | 12 oz. (373 g) |
| Visual Fault Locator Specifications | |
| Output Wavelength | ~650 nm |
| Output Power | 0 dBm (1 mW) |
| Operating Modes | CW/Flash |
| Connector Type | LC |
| Weight | 10 oz. (284 g) |
| Connector Type | SC |
| Dual OWL PRO 850 / Laser OWL PRO 1310 | |
| Battery Life | Up to 150 hours (re-chargeable Lithium Polymer) |
| Operating Temp. | 0 to 55° C |
| Storage Temp. | 0 to 75° C |
| Dimensions | 2.87 x 4.42 x 1.25 in. (72.9 x 112.3 x 31.8 mm) |
| Weight | 10 oz. (284 g) |
| Connector Type | SC |
| Output Type – Multimode | |
| Launch Method | LED |
| Center Wavelength | 850 nm: 850 ±30 nm |
| Spectral Width | 850 nm: 50 nm |
| Output Power | -20 dBm |
| Output Modes | CW / Modulated |
| Initial Accuracy | ± 0.1 dB |
| Output Type – Singlemode | |
| Launch Method | FP Laser |
| Center Wavelength | 1310 nm: 1310 ± 20 nm |
| Spectral Width | 1310 nm: 2 nm |
| Output Power | -10 dBm |
| Output Modes | CW / Modulated |
| Initial Accuracy | ± 0.1 dB |
