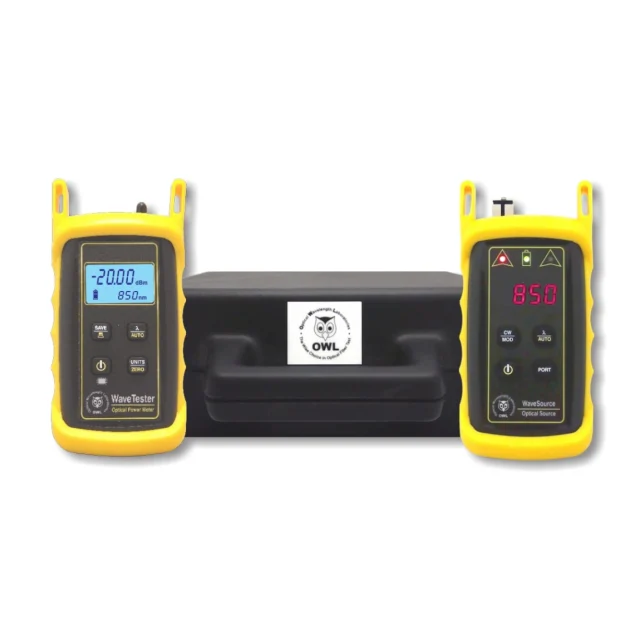

OWL KIT-WT-WS-MDSC WaveTester, WaveSource 850/1300 Test Kit, SC

KIT-WT-WS-MDSC Includes Only:

• Power Meter: WaveTester
• Light Source: WaveSource MM
• OWL Reporter software
• Product manuals
• USB download / charger cables
• Re-chargeable Lithium Polymer batteries
• NIST certificate
• Carrying case
• Protective rubber boots

Features:

• Certification of multimode fiber links at 850 nm and 1300 nm
• Auto-test functions store references and data points automatically
• Data storage for up to 200 data points
• USB interface for continuous data logging, report printing, or data downloading
• OWL Reporter software for printing formatted fiber certification reports
• Measurement modes include absolute (for optical power) or relative (for optical loss)
• Selectively view, delete or resample data points

Many fiber optic network bids and Requests For Quote (RFQ) are citing cabling standards to specify the set of guidelines (such as fiber length) that the network installer must follow during the network installation. Adherence to such standards is meant to ensure the quality of the installation and guarantee that the network will perform as it was designed. The process of testing a network installation to ensure its adherence to specified standards is called certification, and often requires hardcopy documentation as proof of adherence to standards. The WaveTester / WaveSource 850/1300 Test Kit contains the tools necessary for certifying fiber optic links against a myriad of popular cabling standards in multimode networks. The WaveTester optical power meteris multimode and singlemode ready, and can store reference values for all wavelengths used for optical loss measurements. Up to 200 fiber runs may be stored, and downloaded via a PC serial port for report generation using OWL Reporter software. The WaveSource 850/1300 is a multimode light source. Its dual wavelength outputs (850 nm & 1300 nm) are temperature-stabilized for accurate measurements.
