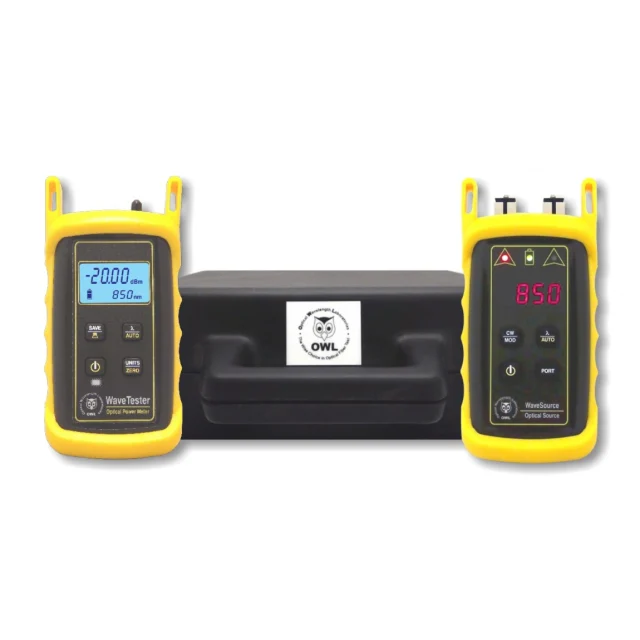

KIT-WT-WS-MDVSC Includes Only:
- Power Meter: WaveTester
- Light Source: WaveSource MM VFL
- OWL Reporter software
- Product manuals
- USB download / charger cables
- Re-chargeable Lithium Polymer batteries
- NIST certificate
- Carrying case
- Protective rubber boots
Features:
- Certification of multimode fiber links at 850 nm and 1300 nm
- Auto-test functions store references and data points automatically
- Data storage for up to 200 data points
- USB interface for continuous data logging, report printing, or data downloading
- OWL Reporter software for printing formatted fiber certification reports
- Measurement modes include absolute (for optical power) or relative (for optical loss)
- Near-end visual fault location
- Visual fiber identification
- Selectively view, delete or resample data points
Many fiber optic network bids and Requests For Quote (RFQ) are citing cabling standards to specify the set of guidelines (such as fiber length) that the network installer must follow during the network installation. Adherence to such standards is meant to ensure the quality of the installation and guarantee that the network will perform as it was designed. The process of testing a network installation to ensure its adherence to specified standards is called certification, and often requires hardcopy documentation as proof of adherence to standards. The WaveTester / WaveSource 850/1300/VFL Test Kit contains the tools necessary for certifying fiber optic links against a myriad of popular cabling standards in multimode networks. The WaveTester optical power meteris multimode and singlemode ready, and can store reference values for all wavelengths used for optical loss measurements. Up to 200 fiber runs may be stored, and serially downloaded to a PC for report generation using OWL Reporter software. The WaveSource 850/1300/VFL is a multimode light source. Its dual wavelength outputs (850 nm & 1300 nm) are temperaturestabilized for accurate measurements. AVisual Fault Locator is also included for near-end visual fault location and visual fiber identification.
Technical Details
| Wavetester Optical Power Meter | |
| Detector Type | InGaAs |
| Calibrated Wavelengths | 850, 1300, 1310, 1490, 1550 |
| Measurement Range | +5 to -60 dBm |
| Accuracy | ±0.20 dB |
| Display Resolution | 0.01 dB |
| Battery Life | Up to 1000 hours (Re-chargeable Lithium Polymer) |
| Detector Connector Type | 2.5 mm / 1.25 mm universal |
| Measurement Units | dBm, dB, mW, µW |
| Data Storage | up to 200 readings |
| Display Type | Backlit LCD |
| Auto-Shutdown | Yes |
| Operating Temperature | -10 to 55° C |
| Storage Temperature | -30 to 70° C |
| Dimensions | 2.75 x 4.94 x 1.28 inches (69.85 x 125.48 x 32.51 mm) |
| Weight | 10 oz. (284 g) |
| Wavesource MM/VFL Light Source | |
| Fiber Type | Multimode |
| Launch Method | LED |
| Center Wavelength |
|
| Spectral Width |
|
| Output Power | -20 dBm |
| Initial Accuracy | 0.1 dB |
| Battery Life | Up to 120 hours (Re-chargeable Lithium Polymer) |
| Operating Temperature | 0 to 55° C |
| Storage Temperature | 0 to 70° C |
| Dimensions | 2.75 x 4.94 x 1.28 inches (69.85 x 125.48 x 32.51 mm) |
| Weight | 10 oz. (284 g) |
| VFL Specifications | |
| Output Wavelength | 650 nm |
| Output Power | 1 mW |
| Operating Modes | CW / Flash |
| Connector Type | SC |
