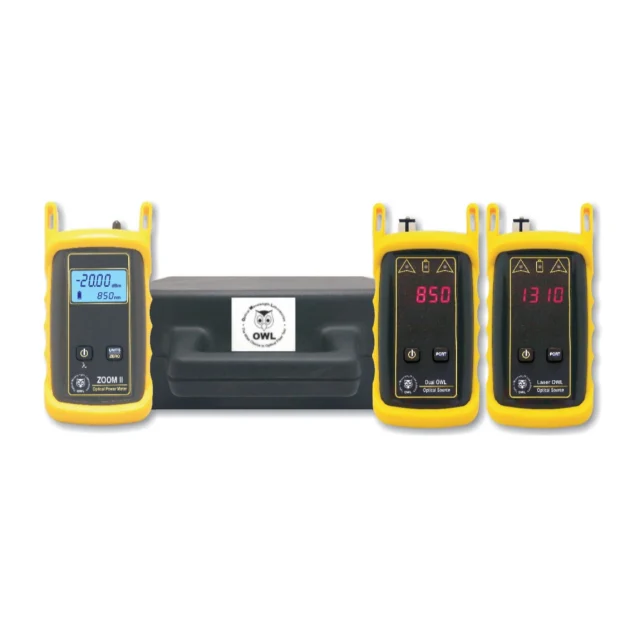

OWL, KIT-Z2-D285SC-L213ST, ZOOM 2, Dual OWL 850, Laser OWL 1310 Test Kit
KIT-Z2-D285SC-L213ST Includes Only:
- Power Meter: ZOOM 2
- Light Source: Dual OWL 850 and Laser OWL 1310
- Product manuals
- Battery chargers
- NIST certificate
- Carrying case
- Protective rubber boots
Features:
- Economical option for quick attenuation and loss testing of both multimode and singlemode networks
- Easy-to-read 4-digit 7-segment backlit LCD display
- Re-chargeable Lithium Polymer battery
- Store reference values for calibrated wavelengths
- Intuitive 2-button interface on both units
- On-screen wavelength, measurement units, and low battery indicator
- NISTtraceable
The ZOOM 2 / Dual OWL 850 / Laser OWL 1310 Test Kit is ideal for LAN managers and installers who need to do simple attenuation tests on their multimode and single-mode networks. The ZOOM 2 (Zeroed Output Optical Meter) is an economical fiber optic power meter. It provides accurate testing of multimode and singlemode fiber cables. The 4-digit 7-segment LCD displays power readings with a resolution of 0.01dB. On-screen indicators display measurement units (dBm, dB, uW), as well as battery life. The ZOOM 2 comes configured with a 2.5mm universal connector for connection to ST or SC connectors, as well as any other fiber connector with a 2.5mm ferrule, and includes a 1.25mm adapter cap for LC connections. The Dual OWL 850 is a NIST traceable multimode light source. Its LED output is temperature-stabilized for accurate measurements, and compliant to national and international testing standards for certification.. The Dual OWL comes with a SC connector. The Laser OWL 1310 is a NIST traceable singlemode light source. Its FP laser wavelength output is temperature-stabilized for accurate measurements, and compliant to national and international testing standards for certification. The Laser OWL 1310 comes configured with a SC connector.
Technical Details
| ZOOM 2 Optical Power Meter | |
| Detector Type | InGaAs |
| Calibrated Wavelengths | 850, 1300, 1310, 1490, 1550 |
| Measurement Range | +5 to -60 dBm |
| Accuracy | ±0.20 dB |
| Display Resolution | 0.01 dB |
| Battery Life | Up to 1000 hours (Re-chargeable Lithium Polymer) |
| Connector Type | 2.5mm/1.25mm universal |
| Measurement Units | dBm, dB, mW, µW |
| Data Storage | up to 200 readings |
| Display Type | Backlit LCD |
| Auto-Shutdown | Yes |
| Operating Temperature | -10 to 55° C |
| Storage Temperature | -30 to 70° C |
| Dimensions | 2.75 x 4.94 x 1.28 inches (69.85 x 125.48 x 32.51 mm) |
| Weight | 10 oz. (284 g) |
| Dual OWL 850 Multimode Light Source | |
| Fiber Type | Multimode |
| Launch Method | LED |
| Center Wavelength | 850 nm ± 30 nm |
| Spectral Width | 850 nm: 50 nm |
| Output Power | -20 dBm |
| Initial Accuracy | 0.1 dB |
| Battery Life | Up to 120 hours (Re-chargeable Lithium Polymer) |
| Operating Temperature | 0 to 55° C |
| Storage Temperature | 0 to 70° C |
| Dimensions | 2.75 x 4.94 x 1.28 inches (69.85 x 125.48 x 32.51 mm) |
| Weight | 10 oz. (284 g) |
| Connector | ST |
| Laser OWL 1310 Singlemode Laser Source | |
| Fiber Type | Singlemode |
| Launch Method | FP Laser |
| Center Wavelength | 1310 nm ± 20 nm |
| Spectral Width | 1310 nm: 2 nm |
| Output Power | -10 dBm |
| Initial Accuracy | 0.1 dB |
| Battery Life | Up to 120 hours (Re-chargeable Lithium Polymer) |
| Operating Temperature | 0 to 55° C |
| Storage Temperature | 0 to 70° C |
| Dimensions | 2.75 x 4.94 x 1.28 inches (69.85 x 125.48 x 32.51 mm) |
| Weight | 10 oz. (284 g) |
| Connector | SC |
