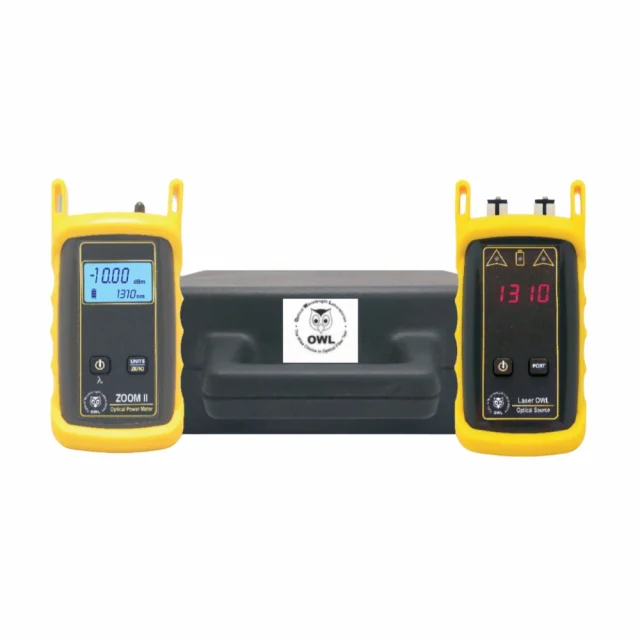

Optical Wavelength Labs (OWL), KIT-Z2-L2sc, ZOOM 2, Laser OWL Test Kit, Backlit LCD, Singlemode
KIT-Z2-L2sc Includes Only:
- Power Meter: ZOOM 2
- Light Source: Laser OWL
- Product manuals
- Battery chargers
- NIST certificate
- Carrying case
- Protective rubber boots
Features:
- Economical option for quick attenuation and loss testing singlemode networks
- Easy-to-read 4-digit 7-segment backlit LCD display
- Re-chargeable Lithium Polymer battery
- Store reference values for calibrated wavelengths
- Intuitive 2-button interface on both units
- On-screen wavelength, measurement units, and low battery indicator
- NISTtraceable
- Light source comes configured with SC connector
The ZOOM 2 / Laser OWL Test Kit is ideal for LAN managers and installers who need to do simple attenuation tests on their singlemode networks. The ZOOM 2 (Zeroed Output Optical Meter) is an economical fiber optic power meter. It provides accurate testing of singlemode fiber cables. The 4-digit 7-segment LCD displays power readings with a resolution of 0.01dB. On-screen indicators display measurement units (dBm, dB, uW), as well as battery life. The ZOOM 2 comes configured with a 2.5mm universal connector for connection to ST or SC connectors, as well as any other fiber connector with a 2.5mm ferrule, and includes a 1.25mm adapter cap for LC connections. The Laser OWL is a 1310/1550nm NIST traceable singlemode light source. Its dual wavelength outputs are temperature-stabilized for accurate measurements. The Laser OWLcomes configured with SC connectors.
Technical Details
| Zoom 2 Optical Power Meter | |
| Detector Type | InGaAs |
| Calibrated Wavelengths | 850, 1300, 1310, 1490, 1550 |
| Measurement Range | +5 to -60 dBm |
| Accuracy | ±0.20 dB |
| Display Resolution | 0.01 dB |
| Battery Life | Up to 1000 hours (Re-chargeable Lithium Polymer) |
| Connector Type | 2.5 mm / 1.25 mm universal |
| Measurement Units | dBm, dB, mW, µW |
| Display Type | Backlit LCD |
| Auto-Shutdown | Yes |
| Operating Temperature | -10 to 55° C |
| Storage Temperature | -30 to 70° C |
| Dimensions | 2.75 x 4.94 x 1.28 inches (69.85 x 125.48 x 32.51 mm) |
| Weight | 10 oz. (284 g) |
| Laser Owl Singlemode Laser Source | |
| Fiber Type | Singlemode |
| Launch Method | FP Laser |
| Center Wavelength |
|
| Spectral Width |
|
| Output Power | -10 dBm |
| Initial Accuracy | 0.1 dB |
| Battery Life | Up to 120 hours (Re-chargeable Lithium Polymer) |
| Operating Temperature | 0 to 55° C |
| Storage Temperature | 0 to 70° C |
| Dimensions | 2.75 x 4.94 x 1.28 inches (69.85 x 125.48 x 32.51 mm) |
| Weight | 10 oz. (284 g) |
