KIT-Z2S-D285st Includes Only:
- Power Meter: Silicon ZOOM 2
- Light Source: Dual OWL 850
- Product manuals
- Battery chargers
- NIST certificate
- Carrying case
- Protective rubber boots
Features:
- Economical option for quick attenuation and loss testing of multimode networks at 850nm
- Easy-to-read 4-digit 7-segment backlit LCD display
- Re-chargeable Lithium Polymer battery
- Store reference values for calibrated wavelengths
- Intuitive 2-button interface on both units
- On-screen wavelength, measurement units, and low battery indicator
- NISTtraceable
- Light source comes configured with ST connector.

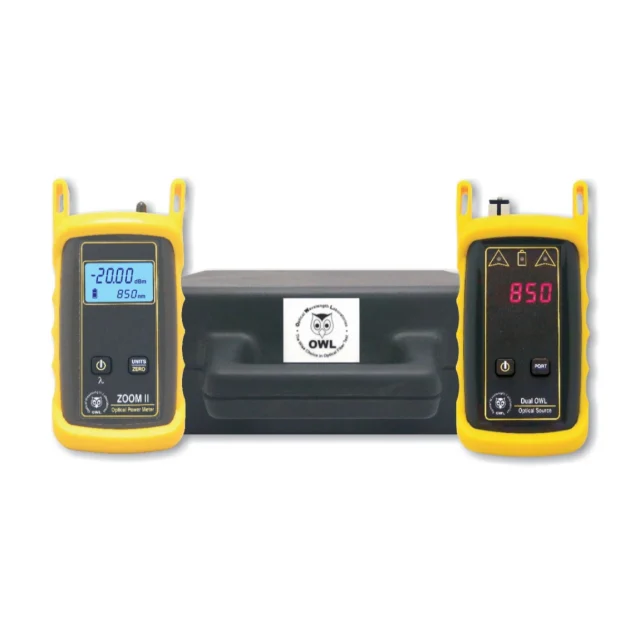

The Silicon ZOOM 2 / Dual OWL 850 Test Kit is ideal for LAN managers and installers who need to do simple attenuation tests on their multimode networks. The Silicon ZOOM 2 (Zeroed Output Optical Meter) is an economical fiber optic power meter designed to provide accurate testing of multimode fiber cables at 850nm wavelength. The 4-digit 7-segment LCD display shows power readings with a resolution of 0.01dB, power units in dBm, dB, or uW, and battery power level. The Silicon ZOOM 2 comes configured with a 2.5 mm universal port for connection to SC, ST, and other connector types that have a 2.5 mm ferrule. The Dual OWL 850 is an 850nm NIST traceable multimode light source. Its 850nm output is temperature-stabilized for accurate measurements. The Dual OWL 850 comes with a ST connector.
Technical Details
| Silicon ZOOM 2 Optical Power Meter | |
| Detector Type | Silicon |
| Calibrated Wavelengths | 650, 850, 980 |
| Measurement Range | +5 to -60 dBm |
| Accuracy | ±0.20 dB |
| Display Resolution | 0.01 dB |
| Battery Life | Up to 1000 hours (Re-chargeable Lithium Polymer) |
| Connector Type | 2.5 mm universal |
| Measurement Units | dBm, dB, mW, µW |
| Display Type | Backlit LCD |
| Auto-Shutdown | Yes |
| Operating Temperature | -10 to 55° C |
| Storage Temperature | -30 to 70° C |
| Dimensions | 2.75 x 4.94 x 1.28 inches (69.85 x 125.48 x 32.51 mm) |
| Weight | 10 oz. (284 g) |
| Dual OWL 850 Multimode Light Source | |
| Fiber Type | Multimode |
| Launch Method | LED |
| Center Wavelength | 850 nm ± 30 nm |
| Spectral Width | 850 nm: 50 nm |
| Output Power | -20 dBm |
| Initial Accuracy | 0.1 dB |
| Battery Life | Up to 120 hours (Re-chargeable Lithium Polymer) |
| Operating Temperature | 0 to 55° C |
| Storage Temperature | 0 to 70° C |
| Dimensions | 2.75 x 4.94 x 1.28 inches (69.85 x 125.48 x 32.51 mm) |
| Weight | 10 oz. (284 g) |
| Connector Type | ST |
