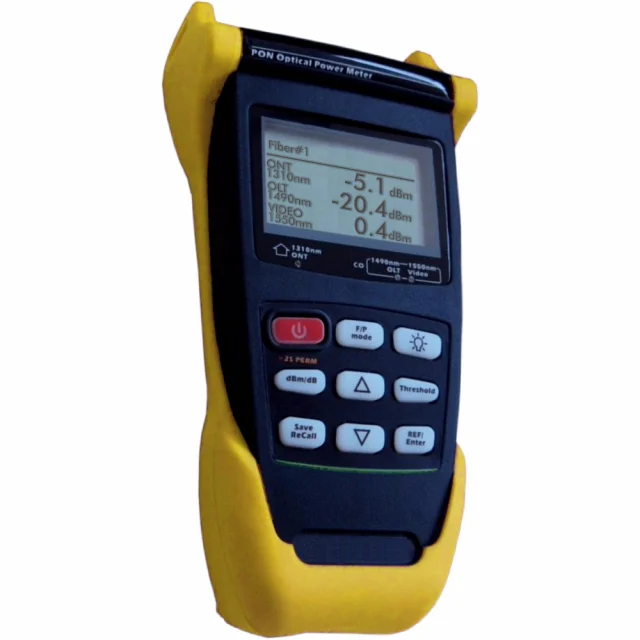

Optical Wavelength Labs (OWL), PON-2M, PON Power Meter, Auto Power Off, Connector SC, ORL 35 dB
Features:
- Hand-held PON power meter
- Simultaneous measurement of PON signals
- Upstream (from ONT): 1310nm
- Downstream (from OLT): 1490 and 1550nm
- Data storage for up to 100 data points
- Stores up to 10 threshold sets
- 36 hour battery life (3 AAAbatteries)
- 10-minute auto-shutdown
The PON-2M PON power meter allows users to simultaneously measure signals upstream (1310nm) from the ONT and downstream (1490nm & 1550nm) from the OLT in FTTH/PON networks. Up to 100 data points can be stored in internal memory, which can be recalled on the LCD display at a later time. Up to 10 threshold sets can be stored in internal memory, allowing users to measure PON signals against pre-set thresholds based on different measurement points in the FTTH network. This unit runs 36 hours on 3 AAAbatteries, and has 10-minute shutdown feature.
Technical Details
| Measurement Range |
|
| ORL | 35 dB |
| Pass-Through Insertion Loss | <1.5 dB |
| Accuracy |
|
| Threshold Sets | 10 |
| Data Storage | 100 |
| Connectors | SC |
| Auto Power Off | Yes |
| Battery Charge | Yes |
| Operation Time | ~36 hours |
| Storage Temperature | -20 to +60° C |
| Operating Temperature | -10 to +50° C |
| Operating/Storage Humidity | 90% relative |
| Power Supply | (3) AAA batteries or AC adapter |
| Size | 7.48″ x 3.54″ x 1.57″ |
| Weight | ~1 pound |
