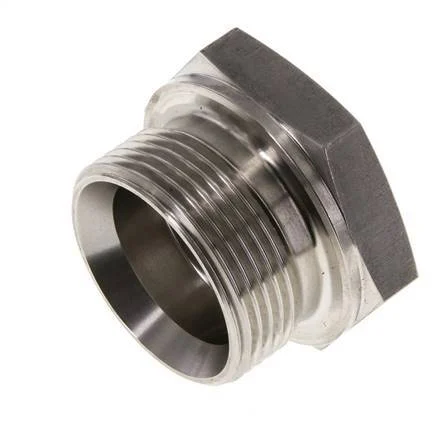

This is a closing plug with an external hexagon and it is used for hydraulic applications. Stainless steel 316 (1.4571) fittings have excellent corrosion resistance (better than stainless steel 304). The plug has a 60° cone seat design.
Specifications
Thread : 1 1/4 inch
Connection type : Outer thread cylindrical BSPP-G
Fitting features : Hydraulic
Material : Stainless steel
Max pressure at 20 °C (bar) : 150
Type of sealing : 60° cone
Material connection 1 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
With drain : No
