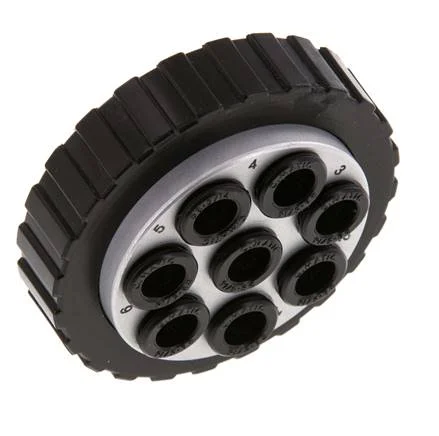

POM Multi-coupling Plug 8×8 mm Push-in Connections Vacuum

Polyoxymethylene (POM) multi-coupling plug with eight 8 mm push-in connections. With this multi-coupling setup, you can easily have a connection hub of up to 8 pneumatic lines. A pneumatic coupling is used to quickly connect air tools to a compressed air line.

This coupling is suitable for vacuum applications. The operating pressure range is -0.99 to 12 bar (-14 to 174 psi). The coupling is suitable for temperatures between -20 to 70 °C (-4 to 158 °F). It has a round design.

Note: Sleeves and plugs will only pair up when they have a corresponding line at the other end of the connection.

Pros:

• Multi-couplings are used for comfortable and non-interchangeable coupling of several lines with only one coupling
• Cost efficient and compact design.
• It can be used for vacuum applications

Specifications

Push-in connection : 8 mm
Connection type : Push-in
Material : Polyoxymethylene (POM)
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 12
Min temperature (°C) : -20
Max temperature (°C) : 70
Coupling features : Vacuum
Min pressure (bar) : -0.99
Shape : Plug (male)
Number of outlets : 8
With dust cap : No
