Key Features
Built for Wide StockThe 20-inch capacity and 5 horsepower motor give this planer the muscle for wider boards and dense hardwoods without feeling undersized in a production shop. Helical Cut QualityThe Powermatic 209HH 20-Inch Planer uses 100 four-sided carbide inserts to leave a cleaner surface with less tear-out and less downtime when an edge wears out. Feed Speed ControlMultiple feed rates let you choose faster stock removal or a slower finish pass, which matters when you switch between rough milling and final surfacing.
Overview

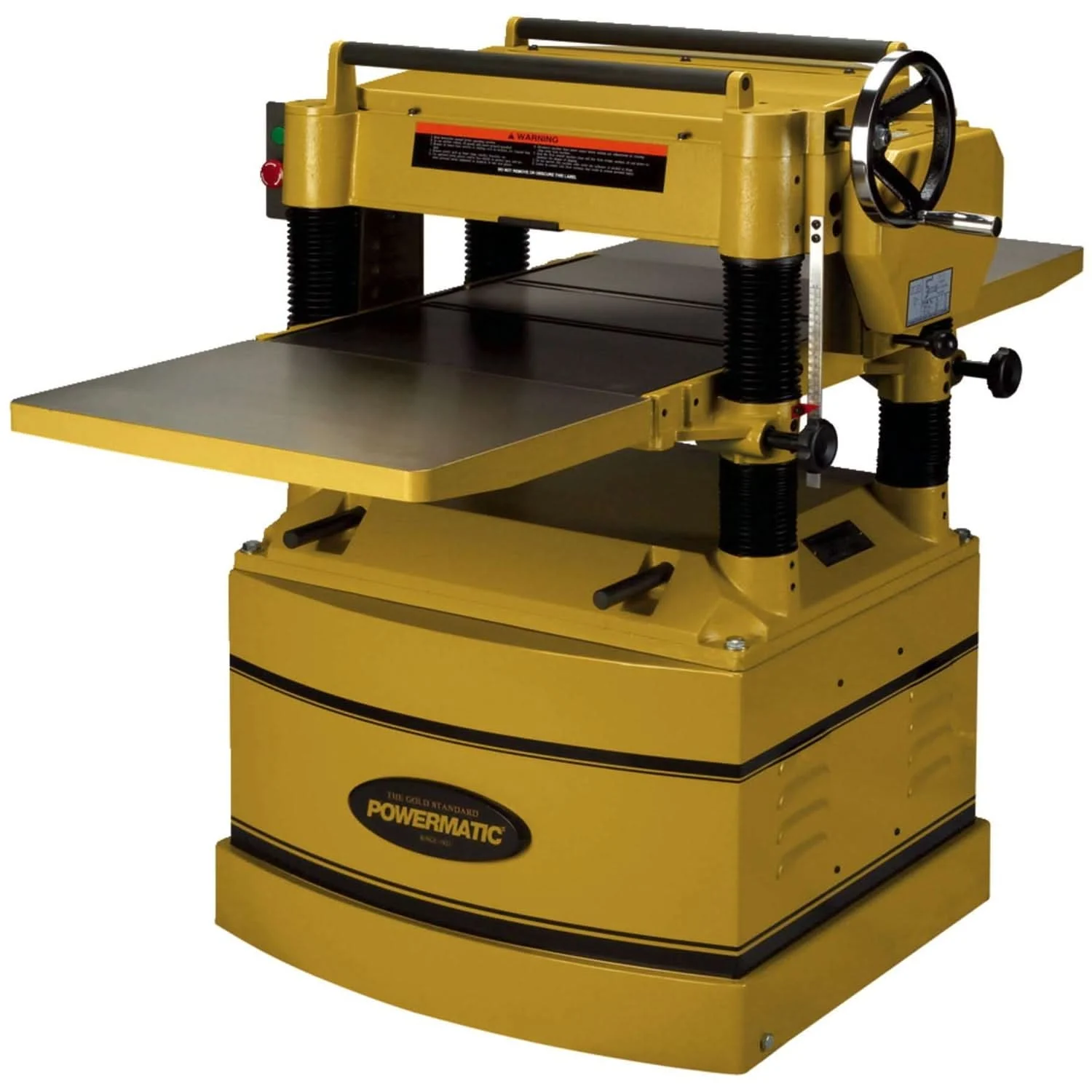

The Powermatic 209HH 20-Inch Planer, Helical Cutterhead, 5 HP, 230V 1Ph is a floor-standing woodworking planer built for serious stock surfacing in professional shops and advanced home shops. This is a planer designed for flattening and thicknessing rough or oversized lumber with consistent results. Model Number 209HH, stock number PM9-1791315, pairs a 20-inch maximum planing width with single-phase 230-volt power, which makes it a practical fit for shops that need industrial capacity without stepping up to three-phase service.
The core of this machine is the helical cutterhead running at 5,000 RPM with 100 four-sided carbide knife inserts. That matters because carbide inserts hold an edge well, can be rotated instead of fully replaced when one edge gets nicked, and generally leave a smoother surface than a straight-knife setup. In real shop use, that means less tear-out in figured material, less time spent chasing finish issues after planing, and less interruption when one insert hits hidden grit or a staple mark.
Power and capacity are where this machine earns its footprint. The 5 horsepower motor is sized for heavy stock removal, while the 20-inch width and 8-inch maximum planing thickness let you handle large panels, wide hardwood boards, and thick rough stock that smaller lunchbox planers simply are not built for. Powermatic also lists a maximum full-width depth of cut of 3/32 inch, so you can make meaningful passes without treating every board like a finish cut.
Feed control is another real advantage here. The planer uses an oil-bath gearbox with feed rates of 24 and 31 feet per minute, and supplementary product data notes lower 16 and 20 feet per minute options with a gear change. That gives you flexibility based on the job. Use the faster rates when you are trying to move rough lumber efficiently, and slow the feed down when surface quality matters more than throughput. For a shop doing both milling and finish prep, that range is not a small detail. It is what keeps one machine useful across different stages of the job.
The machine itself is built the way you want a stationary planer built: heavy. The cast iron base, table, and head assembly add rigidity and help keep vibration under control. The precision-ground cast iron table is supported by four steel columns, which is the kind of construction that pays off when you are feeding longer or heavier boards and want the cutterhead to stay aligned pass after pass. Toolup also notes a large 55-1/2 x 20 inch working area with cast iron extensions, which helps support stock before and after the cut.
Material handling and cut consistency also get attention. The planer uses a sectional infeed roller and chip breaker, along with corrugated infeed and fine-groove outfeed rollers called out in the product data. Those details help the machine maintain steady control over the board as it enters, passes under the cutterhead, and exits. Powermatic also positions the pressure bar and anti-kickback fingers close to the cutterhead, which improves stock control and helps support finish quality while adding a layer of protection during feeding.
Dust handling is straightforward and shop-friendly. The 5-inch dust port is sized for connection to a dedicated dust collection setup, and supplementary data lists a minimum dust collection requirement of 900 cubic feet per minute. On a planer this size, that matters. Good chip evacuation is not just about keeping the floor cleaner. It helps reduce clogging around the cutterhead area and keeps planing performance more consistent during long runs.
Who should buy it? This machine makes sense for cabinet shops, furniture builders, millwork shops, schools, and serious woodworkers who routinely mill their own stock and need repeatable results on wider boards. If you mostly run narrow trim and occasional hobby pieces, it is more machine than you need. If your work includes hardwood slab prep, face-frame material, glued-up panels, or regular rough-lumber processing, the Powermatic 209HH 20-Inch Planer is the kind of stationary planer that saves time, improves finish quality, and holds up to real production use.
See the Powermatic 209HH 20-Inch Planer at Work
This is the kind of planer you buy when smaller machines start slowing down your workflow. The wide table, heavy build, and 20-inch planing capacity are aimed at shops moving full-size boards, not just trimming down small parts.
- Maximum planing width: 20 inches
- Maximum planing thickness: 8 inches
Cleaner Finish, Less Knife Hassle
The helical cutterhead is the selling point here. Instead of dealing with long straight knives, you get 100 four-sided carbide inserts that can be rotated when one edge dulls or chips. That keeps maintenance simpler and helps you stay productive.
- Cutterhead speed: 5,000 RPM
- 100 four-sided carbide knife inserts
Set the Feed Rate for the Job
One feed speed is a compromise. This machine gives you options, so you can push rough material through faster or slow things down when the final surface matters more than output.
- Feed rates: 24 and 31 FPM
- Additional 16 and 20 FPM settings available with gear change per supplementary product data
Key Specifications
| Tool Type | Floor-Standing Planer |
|---|---|
| Motor Power | 5 HP |
| Voltage | 230V, 1 Phase |
| Motor Current | 28 Amps |
| Recommended Circuit Size | 40 Amps |
| Maximum Planing Width | 20 in. |
| Maximum Planing Thickness | 8 in. |
| Minimum Planing Length | 6-3/4 in. |
| Maximum Full Width Depth of Cut | 3/32 in. |
| Cutterhead Type | Helical |
| Cutterhead Diameter | 3-3/16 in. |
| Cutterhead Speed | 5,000 RPM |
| Knife Count | 100 |
| Feed Rate | 24/31 FPM and 16/20 FPM with gear change |
| Table Size | 20 x 55-1/2 in. |
| Dust Port Diameter | 5 in. |
| Minimum Dust Collection | 900 CFM |
| Weight | 800 lbs |
Compatibility
Dust Collection Uses a 5-inch dust port for connection to a shop dust collection system. Supplementary product data lists 900 CFM minimum dust collection requirement. Electrical Requirement Designed for 230V single-phase power. Recommended circuit size is 40 amps.
Built For
WoodworkingCabinet ShopsFurniture MakingMillworkRough Lumber SurfacingHardwood ThicknessingProduction ShopsSerious DIY / Hobbyist
Pro Tip
Use the faster feed setting when you are knocking rough stock down to size, then switch to the slower feed rate for your last pass. That is the easiest way to get more out of the helical cutterhead and leave yourself less cleanup at the sander.
Tool Nut’s Take
Tool Nut’s Take
Powermatic 209HH 20-Inch Planer Means Business
If you need real planer capacity, a helical head, and single-phase shop power, this is the kind of machine that feels expensive right up until you start feeding hardwood through it every day.
- Who it’s for: Woodworkers, cabinet shops, and furniture builders running wide stock or rough lumber on a regular basis.
- Why it stands out: The 20-inch width, 5 horsepower motor, and 100-insert helical cutterhead give you production-level surfacing with better finish quality and easier cutter maintenance.
- Worth knowing: This is an 800-pound floor machine that wants proper 230V power and real dust collection. It is not a casual garage buy, but for the right shop it is a serious upgrade.
Common Questions
- What is the maximum width this planer can handle? The maximum planing width is 20 inches.
- Does this planer use straight knives or a helical cutterhead? It uses a helical cutterhead with 100 four-sided carbide knife inserts.
- What power does it require? This machine is designed for 230V single-phase power and supplementary product data lists a 40-amp recommended circuit.
- What feed speeds are available? Official product data lists a two-speed gearbox at 24 and 31 feet per minute, and supplementary product data adds 16 and 20 feet per minute options with a gear change.
