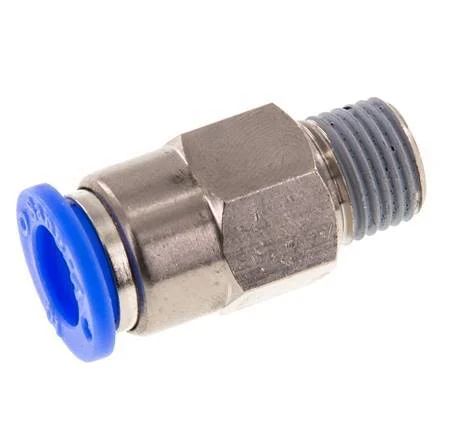

Push-In Fitting 10mm & R1/4” Male Auto Shut-Off Brass/PBT 0-10bar (0-145psi)

This is a nickel-plated brass / PBT auto shut-off push-in fitting. The fitting shuts off automatically when the hose is removed. It has a 10 mm push-in fitting on one side and a R 1/4 inch male threads on the other side. It has an NBR seal that makes it suitable for applications within a temperature range from 0 to 60 °C (32 to 140 °F). The operating pressure range is 0 to 10 bar (0 to 145 psi).

Pros:

• It has a push-in connection for easy installation and release for pneumatic hosing
• Automatically shuts-off after removing the hose

Specifications

Connection size : 1/4 inch
Push-in connection : 10 mm
Connection type : Push-in,Outer thread conical BSPT-R
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 10
Min temperature (°C) : 0
Max temperature (°C) : 60
Check valve feature : Auto shut-off
Min opening pressure (bar) : 0
Model : Straight
Surface protection : Nickel-plated
