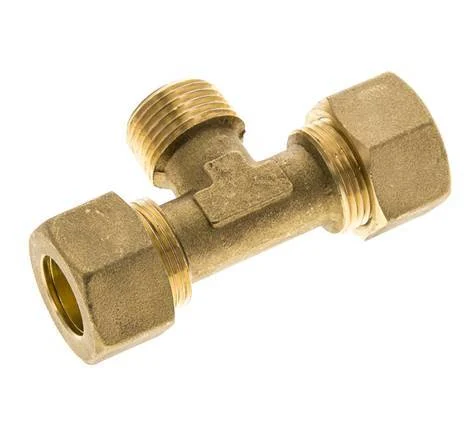

R 1/2” Male x 16mm Brass Tee Compression Fitting 76 Bar DIN EN 1254-2

This T-piece is designed with one male threaded connection and two compression ring connection ports in a T shape. Connection 1 has R 1/2 inch threads. Connection 2 is a 16 mm compression ring. Connection 3 is a 16 mm compression ring. It is made out of brass. It is suitable for media within a temperature range of -60 °C to 300 °C (-76 °F to 572 °F). At 20 °C (68 °F), it can handle a maximum pressure of 76 bar (1102 psi). It is made in accordance with the DIN EN 1254-2.

Cons:

• Since it has a compression ring connection, it can only be used once

FL3T-MO series

The FL3T-MO series has 3 connection ports. One male threaded port and two compression ring connection ports in the shape of a T. Made out of brass with a max pressure of 150 bar.

Specifications

Thread (smallest) : 1/2 inch
Compression ring connection (mm) : 16
Connection type : Outer thread conical BSPT-R
Material : Brass
Max pressure at 20 °C (bar) : 76
Min temperature (°C) : -60
Max temperature (°C) : 300
Standard : DIN EN 1254-2
Model : T-piece
Angle adjustable : No
Material connection 1 : Brass
Material connection 2 : Brass
Material connection 3 : Brass
With drain : No
