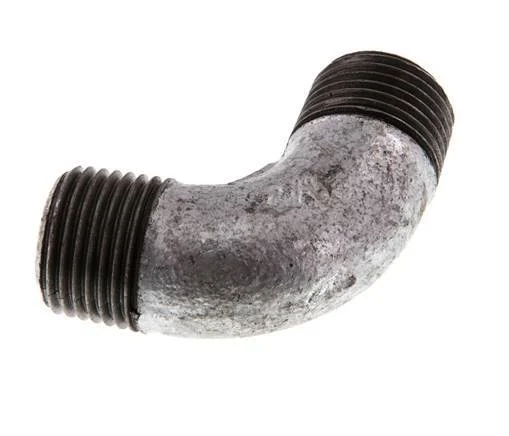

R 1/2” Male Zinc plated Cast iron 90 deg Elbow Fitting 25 Bar [2 Pieces]

This elbow fitting is designed with female threads. Connection 1 has R 1/2 inch threads. Connection 2 has R 1/2 inch threads. It is an elbow fitting. It is made out of cast iron (malleable) and is galvanic/electrolytic zinc plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 25 bar (363 psi). The input and the output are at a 90° angle.

FL2E-M series

The FL2E-M series are elbow fittings with two male connection points at a 90 degree bend. They are made out of brass, cast iron, steel, or stainless steel.

Specifications

Thread : 1/2 inch
Thread (smaller) : 1/2 inch
Connection type : Outer thread conical BSPT-R
Material : Cast iron
Max pressure at 20 °C (bar) : 25
Quality of material : Malleable cast iron
Model : 1-part
Bend angle (°) : 90
Material connection 1 : Cast iron
Material connection 2 : Cast iron
Material quality connection 1 : Malleable cast iron
Material quality connection 2 : Malleable cast iron
Shape : Elbow
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
