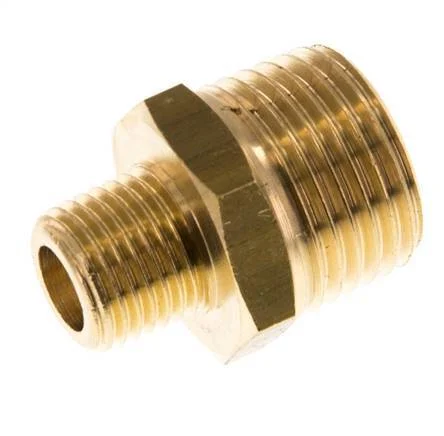

R 1/2” x R 1/4” Brass Double Nipple 16 Bar [2 Pieces]

This double nipple is designed with male to male threads. Connection 1 has R 1/2 inch threads. Connection 2 has R 1/4 inch threads. It is a straight fitting. It is made out of brass (bronze). At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi). It has a 22 mm nut to be tightened with a wrench.

FL2S-M series

The FL2S-M series are straight double nipples with two male connection points. Thread standards of NPT, R, G, and metric are available in a wide range. They are a 1-part design made out of brass, cast iron, steel, or stainless steel.

Specifications

Thread : 1/2 inch
Thread (smaller) : 1/4 inch
Connection type : Outer thread conical BSPT-R
Material : Brass
Max pressure at 20 °C (bar) : 16
Quality of material : Bronze
Model : 1-part
Material connection 1 : Brass
Material connection 2 : Brass
Material quality connection 1 : Bronze
Material quality connection 2 : Bronze
Shape : Straight
Wrench width (mm) : 22
