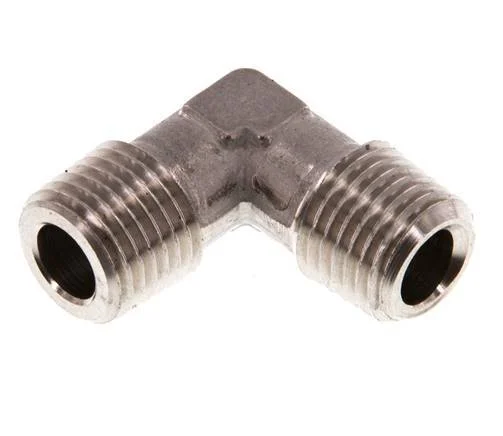

R 1/4” Male Stainless steel 90 deg Elbow Fitting 150 Bar

This elbow fitting is designed with female threads. Connection 1 has R 1/4 inch threads. Connection 2 has R 1/4 inch threads. It is an elbow fitting. It is made out of stainless steel (1.4404). At 20 °C (68 °F), it can handle a maximum pressure of 150 bar (2176 psi). The input and the output are at a 90° angle.

FL2E-M series

The FL2E-M series are elbow fittings with two male connection points at a 90 degree bend. They are made out of brass, cast iron, steel, or stainless steel.

Specifications

Thread : 1/4 inch
Thread (smaller) : 1/4 inch
Connection type : Outer thread conical BSPT-R
Material : Stainless steel
Min pressure (bar) : 0
Min pressure difference (bar) : 0
Max pressure at 20 °C (bar) : 150
Quality of material : Stainless steel 316 L (1.4404)
Model : 1-part
Bend angle (°) : 90
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel 316 L (1.4404)
Material quality connection 2 : Stainless steel 316 L (1.4404)
Shape : Elbow
With drain : No
