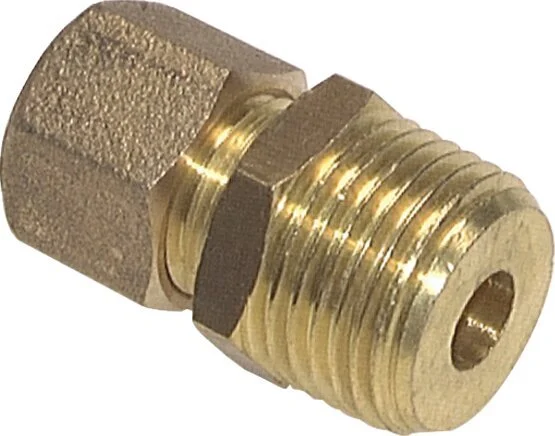

R 1/4” Male x 10mm Brass Straight Compression Fitting 95 Bar DIN EN 1254-2 [2 Pieces]

This straight screw in connection is designed with male threads and a compression ring fitting connection. Connection 1 has R 1/4 inch threads. Connection 2 is a 10 mm compression ring. It is a straight fitting. It is made out of brass. It is suitable for media within a temperature range of -60 °C to 300 °C (-76 °F to 572 °F). At 20 °C (68 °F), it can handle a maximum pressure of 95 bar (1378 psi). It is made in accordance with the DIN EN 1254-2. They have a 3-part design.

Cons:

• Since it has a compression ring connection, it can only be used once

FL2S-MC series

The FL2S-MC series are straight fittings with NPT, G, R, metric or metric canonical male threads to a either a compression ring or cutting ring connection point. 3-part design made out of brass, steel, or stainless steel.

Specifications

Thread : 1/4 inch
Compression ring connection (mm) : 10
Connection type : Outer thread conical BSPT-R
Material : Brass
Max pressure at 20 °C (bar) : 95
Min temperature (°C) : -60
Max temperature (°C) : 300
Standard : DIN EN 1254-2
Model : 3-part
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
