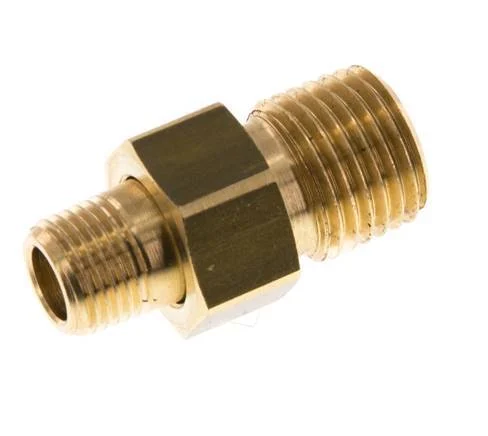

R 1/4” x R 1/8” Brass Double Nipple 3-pieces with Conically sealing 16 Bar [2 Pieces]

This screw connection is designed with male to male threads. Connection 1 has R 1/4 inch threads. Connection 2 has R 1/8 inch threads. It is a straight fitting. It is made out of brass. At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi). They have a 3-part design.

FL2S-M-C series

The FL2S-M-C series are straight fittings with male threads to either a compression or cutting ring connection point. They are made out of brass, steel, or stainless steel and are a 3-part design.

Specifications

Thread : 1/4 inch
Thread (smaller) : 1/8 inch
Connection type : Outer thread conical BSPT-R
Material : Brass
Max pressure at 20 °C (bar) : 16
Type of sealing : Conical sealing
Model : 3-part
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
