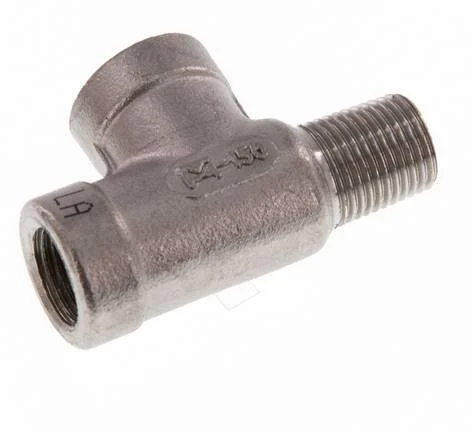

R 1/8” x Rp 1/8” M/F Stainless steel Tee 16 Bar [2 Pieces]

This T-piece is designed with one male thread and two female threads in a T shape. Connection 1 has R 1/8 inch threads. Connection 2 has Rp 1/8 inch threads. Connection 3 has Rp 1/8 inch threads. It is made out of stainless steel (1.4408). At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi).

FL3T-MF series

The FL3T-MF series has 3 connection ports. One male threaded and two female threaded in the shape of a T. Made out of brass, cast iron, or stainless steel, they have a max pressure of either 16 or 25 bar.

Specifications

Thread : 1/8 inch
Thread (smallest) : 1/8 inch
Connection type : Outer thread conical BSPT-R
Material : Stainless steel
Max pressure at 20 °C (bar) : 16
Model : T-piece
Angle adjustable : No
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material connection 3 : Stainless steel
Material quality connection 1 : Stainless steel 316 (1.4408)
Material quality connection 2 : Stainless steel 316 (1.4408)
Material quality connection 3 : Stainless steel 316 (1.4408)
With drain : No
