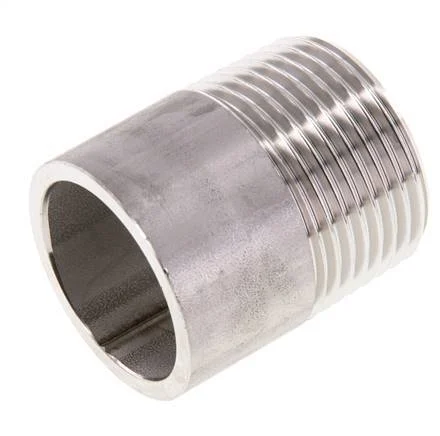

R 1” Male x 33.7mm Stainless steel Pipe Nipple with Welding End 20 Bar DIN 2982 – 40mm

This welding nipple is designed with a male threaded connection point and an end for welding. Connection 1 has R 1 inch threads. Connection 2 is a welding point, with an outer diameter for welding of 33,7 mm and an inner diameter of 1 inch. It is a straight fitting. It is made out of stainless steel (1.4571). It has a total length of 40 mm. At 20 °C (68 °F), it can handle a maximum pressure of 20 bar (290 psi). It is made in accordance with the EN 10241 (DIN 2982).

FL2S-M-P series

The FL2S-M-P series are straight fittings with male R or G threads and the second connection point is either male R or G threads or a welding connection. Made out of brass, steel, or stainless steel.

Specifications

Thread : 1 inch
Thread (smaller) : 1 inch
Welding connection (mm) : 33.7
Connection type : Outer thread conical BSPT-R
Material : Stainless steel
Min pressure (bar) : 0
Min pressure difference (bar) : 0
Max pressure at 20 °C (bar) : 20
Standard : EN 10241 (DIN 2982)
Fitting features : Welding
Quality of material : Stainless steel 321 (1.4541)
Model : 1-part
Length (mm) : 40
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel 321 (1.4541)
Material quality connection 2 : Stainless steel 321 (1.4541)
Shape : Straight
With drain : No
