R 1” x G 1” M/F Nickel plated Brass Tee 16 Bar

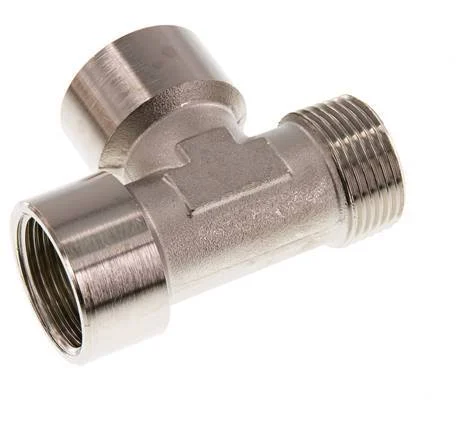

This T-piece is designed with one male thread and two female threads in a T shape. Connection 1 has R 1 inch threads. Connection 2 has female G 1 inch threads. Connection 3 has female G 1 inch threads. It is made out of brass and is nickel-plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi).

FL3T-MF series

The FL3T-MF series has 3 connection ports. One male threaded and two female threaded in the shape of a T. Made out of brass, cast iron, or stainless steel, they have a max pressure of either 16 or 25 bar.

Specifications

Thread : 1 inch
Thread (smallest) : 1 inch
Connection type : Outer thread conical BSPT-R
Material : Brass
Max pressure at 20 °C (bar) : 16
Model : T-piece
Angle adjustable : No
Material connection 1 : Brass
Material connection 2 : Brass
Material connection 3 : Brass
Surface protection connection 1 : Nickel-plated
Surface protection connection 2 : Nickel-plated
Surface protection connection 3 : Nickel-plated
With drain : No
